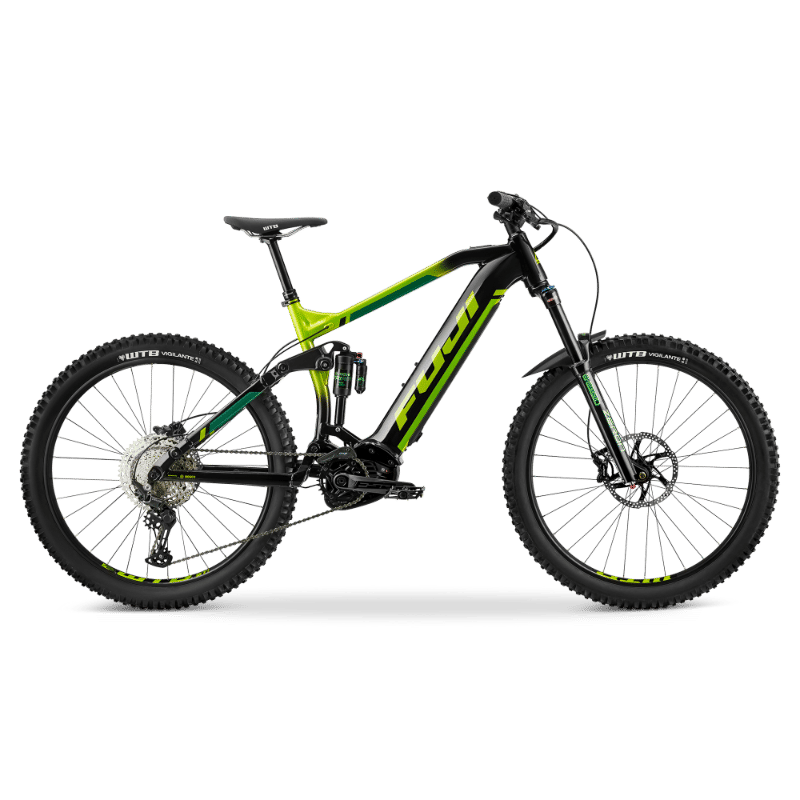

2022 Fuji Blackhill EVO 27.5+ 1.5 geometry
Full frame geometry for the 2022 Fuji Blackhill EVO 27.5+ 1.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 611 | 437 | 73.3 | 66.5 | 120 | 620 | 432 | 828 | 17 | 480 | 1233 | 42 |
| XL | 618 | 466.7 | 73.3 | 66.5 | 130 | 655 | 534 | 841 | 17 | 480 | 1258.4 | 42 |
| L | 621 | 450.7 | 73.3 | 66.5 | 120 | 635 | 483 | 834 | 17 | 480 | 1238.6 | 42 |
All measurements in millimetres unless marked (°) for angles.
