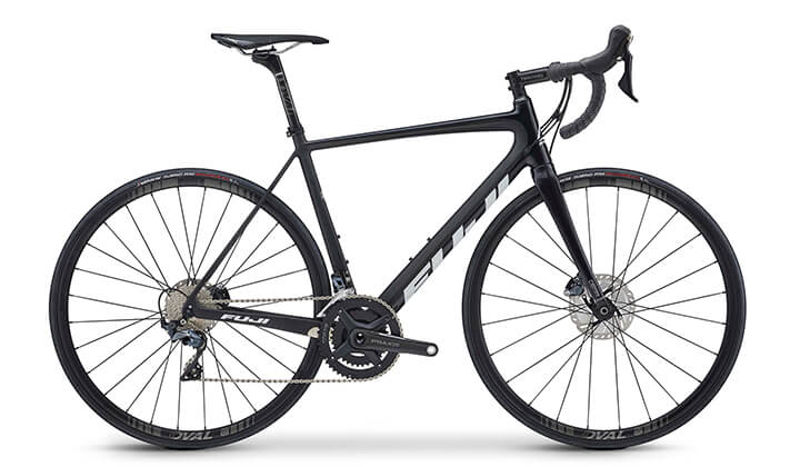

2022 Fuji SL geometry
Full frame geometry for the 2022 Fuji SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46cm | 497 | 372 | 75 | 71 | 100 | 505 | 420 | 707 | 68 | 410 | 979 | 52 | 60.7 |
| 49cm | 499 | 377 | 74.5 | 71.5 | 100 | 515 | 450 | 718 | 68 | 410 | 980 | 52 | 57.6 |
| 52cm | 520 | 378 | 73.8 | 71.5 | 120 | 530 | 480 | 743 | 68 | 410 | 979 | 52 | 57.6 |
| 54cm | 540 | 385 | 73.5 | 73 | 135 | 545 | 500 | 762 | 68 | 410 | 978 | 43 | 57.8 |
| 56cm | 559 | 389 | 73 | 73 | 155 | 560 | 520 | 782 | 68 | 410 | 983 | 43 | 57.8 |
| 58cm | 580 | 403 | 73 | 73 | 175 | 580 | 540 | 801 | 68 | 410 | 1009 | 43 | 57.8 |
| 61cm | 598 | 417 | 73 | 73 | 195 | 600 | 570 | 825 | 68 | 410 | 1029 | 43 | 57.8 |
All measurements in millimetres unless marked (°) for angles.
