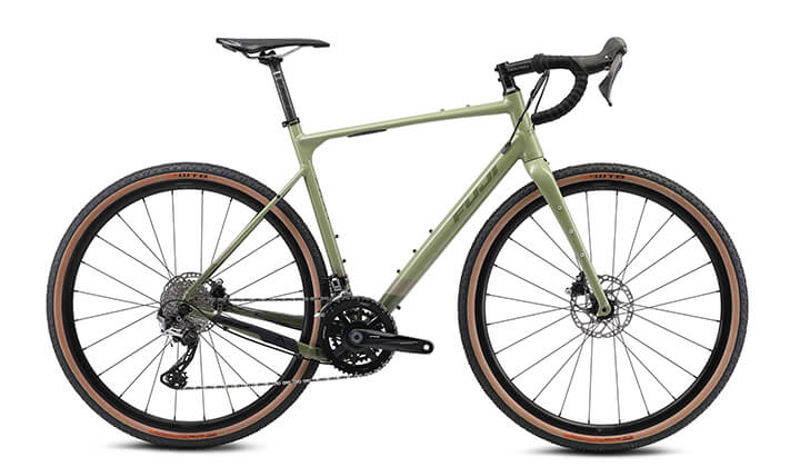

2022 Fuji Jari geometry
Full frame geometry for the 2022 Fuji Jari, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 522 | 360 | 74.5 | 69.5 | 100 | 505 | 460 | 738 | 69 | 430 | 1005 | 48 | 73 |
| XS | 548 | 364 | 75 | 70.5 | 120 | 510 | 480 | 767 | 72 | 430 | 1007 | 48 | 73 |
| S | 560 | 367 | 74 | 70.5 | 140 | 530 | 520 | 790 | 72 | 430 | 1018 | 48 | 70 |
| M | 581 | 372 | 73 | 71 | 155 | 550 | 540 | 804 | 70 | 430 | 1023 | 48 | 67 |
| L | 592 | 382 | 73 | 71.5 | 170 | 565 | 555 | 824 | 70 | 430 | 1034 | 48 | 64 |
| XL | 616 | 392 | 73 | 71.5 | 190 | 580 | 575 | 841 | 70 | 430 | 1049 | 48 | 64 |
| XXL | 635 | 406 | 73 | 71.5 | 210 | 595 | 600 | 865 | 70 | 430 | 1069 | 48 | 64 |
All measurements in millimetres unless marked (°) for angles.
