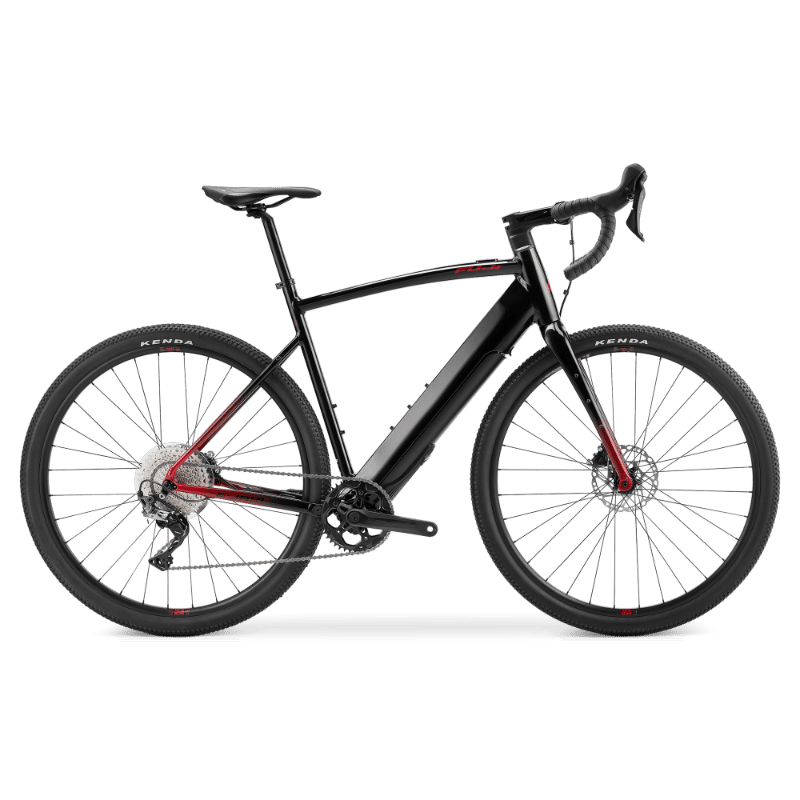

2022 Fuji E-Jari geometry
Full frame geometry for the 2022 Fuji E-Jari, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 552.7 | 376.7 | 74.5 | 70.5 | 125 | 530 | 490 | 72 | 432 | 1023.8 | 48 |
| M | 578.3 | 384 | 74 | 71 | 150 | 550 | 530 | 72 | 432 | 1035.2 | 48 |
| L | 604 | 390.4 | 73 | 71.5 | 175 | 575 | 560 | 72 | 432 | 1044.9 | 48 |
| XL | 629.7 | 397.5 | 73 | 72 | 200 | 590 | 590 | 72 | 432 | 1055 | 48 |
All measurements in millimetres unless marked (°) for angles.
