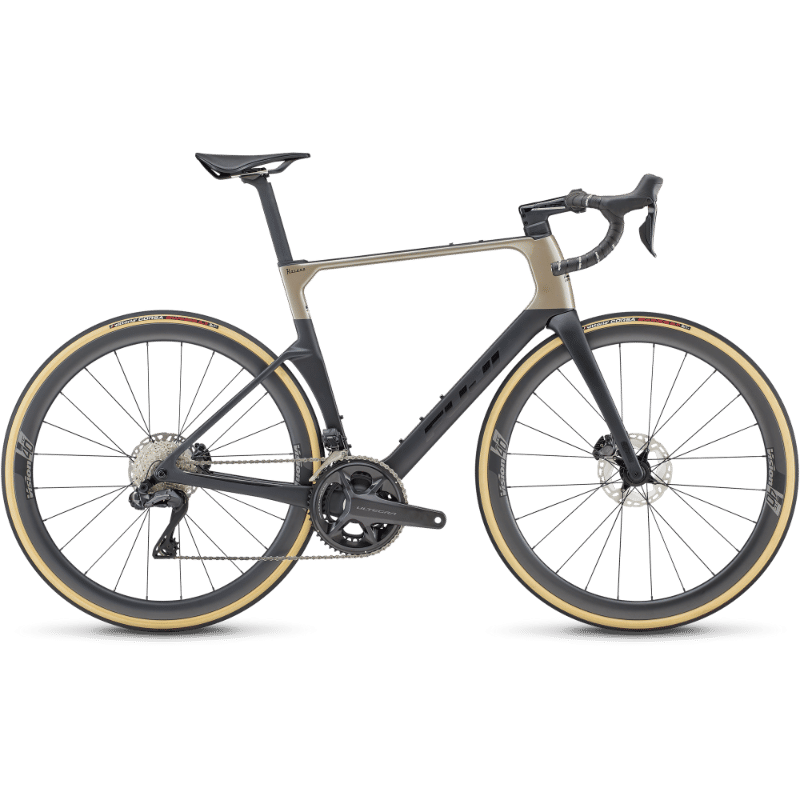

2022 Fuji Kasane geometry
Full frame geometry for the 2022 Fuji Kasane, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 500 | 365 | 75 | 70.5 | 96 | 500 | 445 | 751 | 76 | 415 | 978 | 52 | 66 |
| 51 | 520 | 372.5 | 74 | 71.5 | 116 | 524 | 485 | 783 | 74 | 415 | 979 | 52 | 60 |
| 54 | 540 | 380 | 74 | 72.5 | 136 | 538 | 515 | 809 | 72 | 415 | 990 | 46 | 60 |
| 56 | 569 | 390 | 74 | 72.5 | 165 | 555 | 535 | 831 | 72 | 415 | 1020 | 46 | 60 |
| 58 | 587 | 401 | 73 | 72.5 | 186 | 583 | 553 | 849 | 72 | 415 | 1022 | 46 | 60 |
| 61 | 615 | 410 | 73 | 72.5 | 214 | 585 | 575 | 873 | 70 | 415 | 1039 | 46 | 60 |
All measurements in millimetres unless marked (°) for angles.
