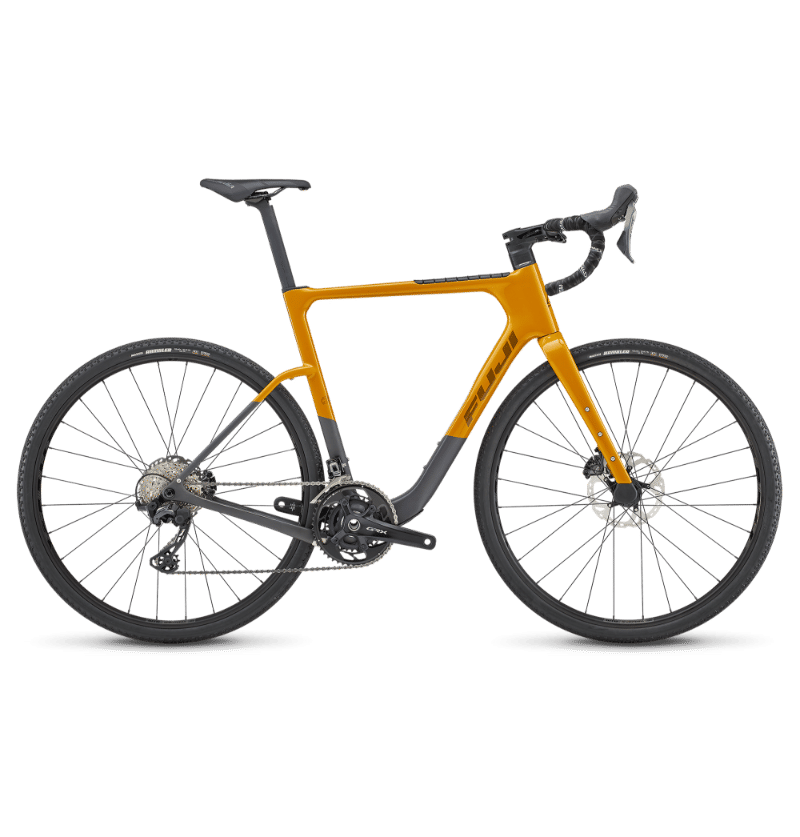

2024 Fuji Jari Carbon geometry
Full frame geometry for the 2024 Fuji Jari Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS (48cm) | 525.5 | 365 | 74 | 70 | 100 | 509 | 480 | 771 | 72 | 425 | 997 | 45 | 81 |
| S (50cm) | 543 | 375 | 74 | 71 | 115 | 524 | 500 | 790 | 72 | 425 | 1004 | 45 | 75 |
| M (53cm) | 567 | 385 | 74 | 71 | 140 | 541 | 530 | 817 | 72 | 425 | 1022 | 45 | 75 |
| L (56cm) | 591 | 395 | 74 | 71 | 165 | 557 | 560 | 844 | 72 | 425 | 1040 | 45 | 75 |
| XL (59cm) | 614 | 405 | 74 | 71 | 190 | 574 | 590 | 871 | 72 | 425 | 1058 | 45 | 75 |
All measurements in millimetres unless marked (°) for angles.
