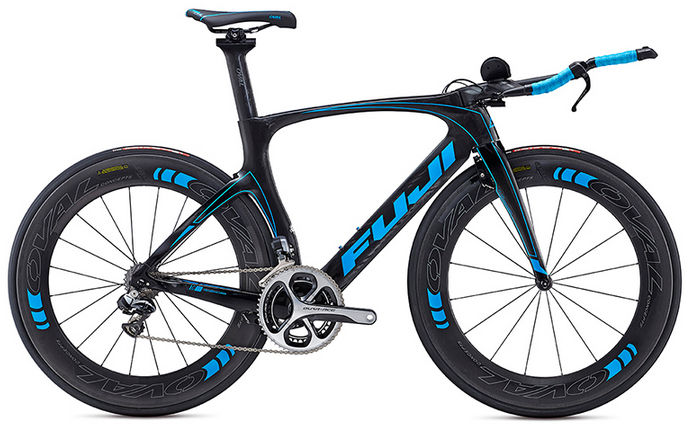

2014 Fuji Norcom Straight geometry
Full frame geometry for the 2014 Fuji Norcom Straight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 488 | 391 | 78 | 72.5 | 85 | 495 | 473 | 770 | 68 | 575 | 395 | 960 | 45 | 59 |
| M | 493 | 405 | 78 | 72.5 | 90 | 510 | 482 | 778 | 68 | 590 | 395 | 975 | 45 | 59 |
| ML | 503 | 420 | 78 | 72.5 | 100 | 527 | 488 | 785 | 68 | 621 | 395 | 1006 | 45 | 59 |
| L | 540 | 435 | 78 | 72.5 | 140 | 550 | 522 | 821 | 68 | 635 | 395 | 1020 | 45 | 59 |
| XL | 565 | 449 | 78 | 72.5 | 164 | 567 | 539 | 843 | 68 | 653 | 395 | 1039 | 45 | 59 |
All measurements in millimetres unless marked (°) for angles.
