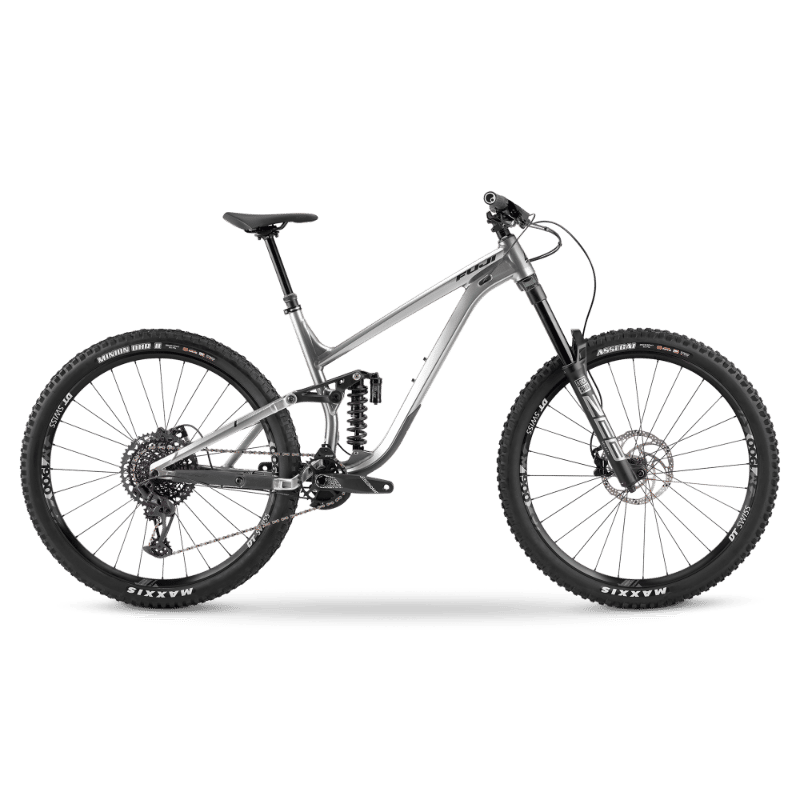

2022 Fuji Rakan 29 LT geometry
Full frame geometry for the 2022 Fuji Rakan 29 LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 450 | 77.5 | 63.5 | 90 | 586 | 380 | 747.8 | 27 | 435.8 | 1224 | 42 |
| M | 621 | 470 | 77 | 63.5 | 100 | 613 | 420 | 760.7 | 27 | 435.8 | 1248 | 42 |
| L | 630 | 490 | 76.5 | 63.5 | 110 | 641 | 458 | 763.5 | 27 | 435.8 | 1273 | 42 |
| XL | 639 | 510 | 76.5 | 63.5 | 120 | 663.5 | 495 | 760 | 27 | 435.8 | 1298 | 42 |
All measurements in millimetres unless marked (°) for angles.
