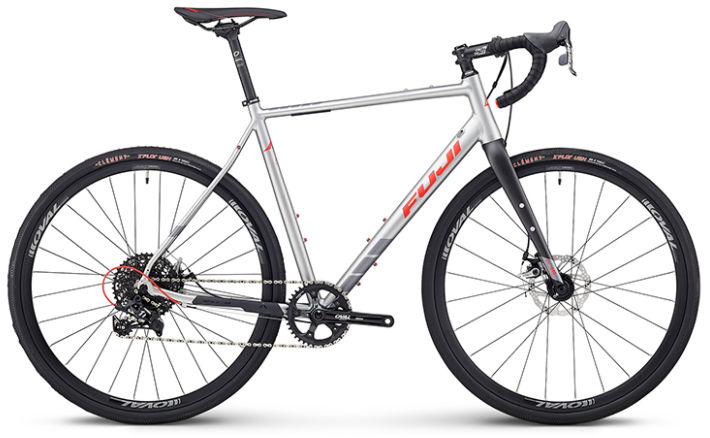

2017 Fuji Jari geometry
Full frame geometry for the 2017 Fuji Jari, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/46 | 532 | 363 | 74.5 | 70.5 | 110 | 510 | 460 | 748 | 69 | 435 | 1004 | 48 | 73 |
| XS/49 | 541 | 375 | 74.5 | 70.5 | 120 | 525 | 490 | 767 | 69 | 435 | 1020 | 48 | 73 |
| S/52 | 560 | 375 | 74 | 71 | 140 | 535 | 520 | 790 | 67 | 435 | 1022 | 48 | 70 |
| M/54 | 572 | 370 | 73 | 71.5 | 150 | 545 | 540 | 804 | 67 | 435 | 1016 | 48 | 67 |
| L/56 | 592 | 379 | 73 | 72 | 170 | 560 | 560 | 824 | 67 | 435 | 1027 | 48 | 64 |
| XL/58 | 609 | 383 | 72.5 | 72 | 190 | 575 | 580 | 841 | 65 | 435 | 1037 | 48 | 64 |
| XXL/61 | 628 | 397 | 72.5 | 72 | 210 | 595 | 610 | 865 | 65 | 435 | 1058 | 48 | 64 |
All measurements in millimetres unless marked (°) for angles.
