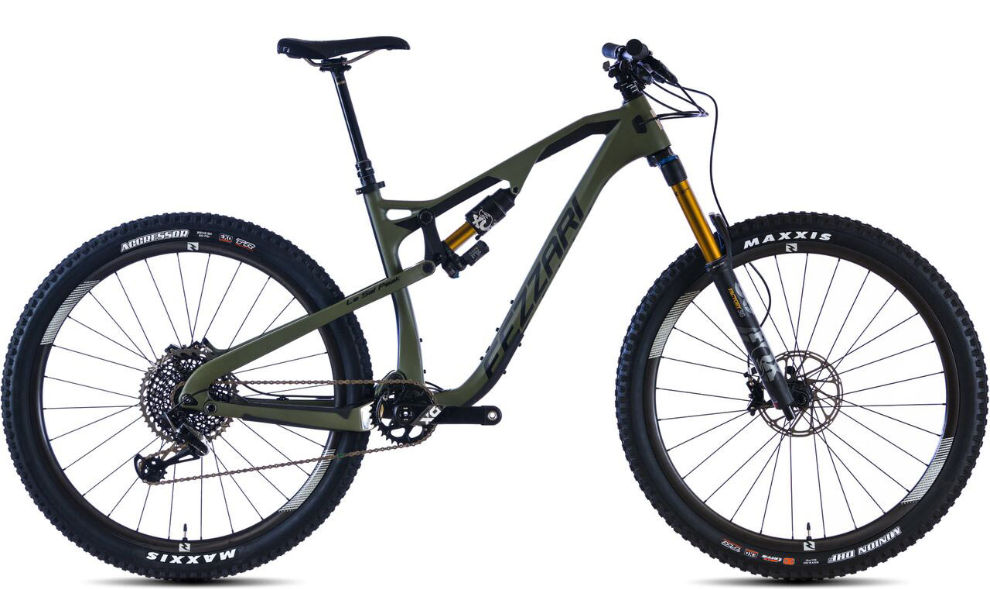

2018 Fezzari La Sal Peak geometry
Full frame geometry for the 2018 Fezzari La Sal Peak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 608 | 445 | 78 | 65 | 95 | 563 | 420 | 790 | 30 | 435 | 1195 | 44 |
| S | 608 | 420 | 78 | 65 | 95 | 538 | 400 | 785 | 30 | 435 | 1170 | 44 |
| L | 626 | 470 | 78 | 65 | 115 | 593 | 460 | 795 | 30 | 435 | 1232 | 44 |
| XL | 639 | 495 | 78 | 65 | 130 | 622 | 495 | 798 | 30 | 435 | 1259 | 44 |
All measurements in millimetres unless marked (°) for angles.
