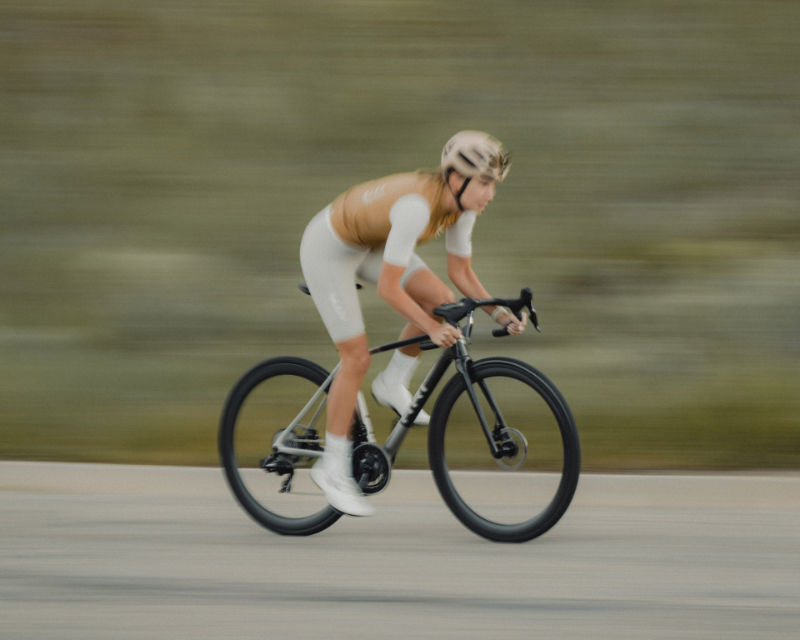

2024 Fezzari Suncrest geometry
Full frame geometry for the 2024 Fezzari Suncrest, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 371 | 74.2 | 71.2 | 104 | 513 | 422 | 698 | 74 | 410 | 973 | 48 | 65 |
| S | 530 | 374 | 74 | 71.5 | 126 | 526 | 464 | 733 | 72 | 410 | 985 | 48 | 63 |
| M | 555 | 387 | 74 | 72 | 150 | 547 | 500 | 763 | 72 | 410 | 998 | 48 | 60 |
| L | 575 | 395 | 73.5 | 72 | 171 | 566 | 525 | 785 | 72 | 410 | 1013 | 48 | 60 |
| XL | 595 | 404 | 73 | 71.5 | 192 | 586 | 550 | 808 | 70 | 410 | 1023 | 48 | 57 |
All measurements in millimetres unless marked (°) for angles.
