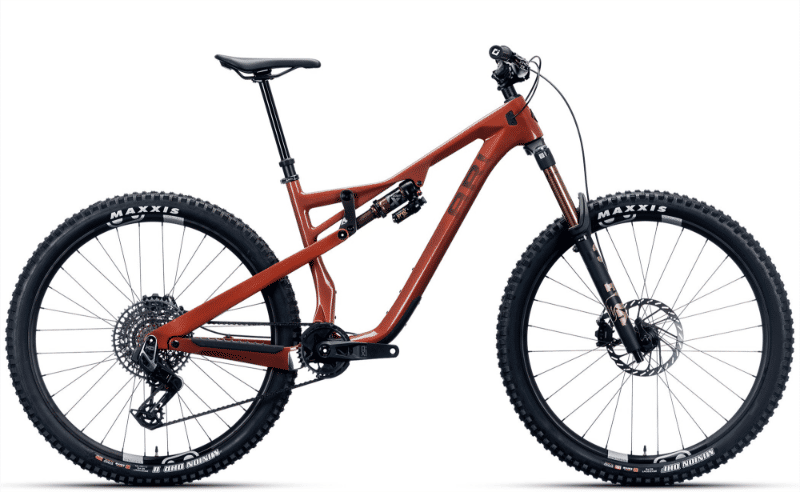

2025 Fezzari Delano Peak geometry
Full frame geometry for the 2025 Fezzari Delano Peak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 455 | 77.5 | 65 | 95 | 593 | 420 | 741 | 28.3 | 434 | 1209.7 | 44 |
| S | 610 | 430 | 77.5 | 65 | 95 | 560 | 400 | 734 | 28.3 | 434 | 1176.7 | 44 |
| L | 628 | 480 | 77.5 | 65 | 115 | 613 | 445 | 751 | 28.3 | 434 | 1234 | 44 |
| XL | 642 | 500 | 77.5 | 65 | 130 | 637 | 460 | 763 | 28.3 | 434 | 1260 | 44 |
All measurements in millimetres unless marked (°) for angles.
