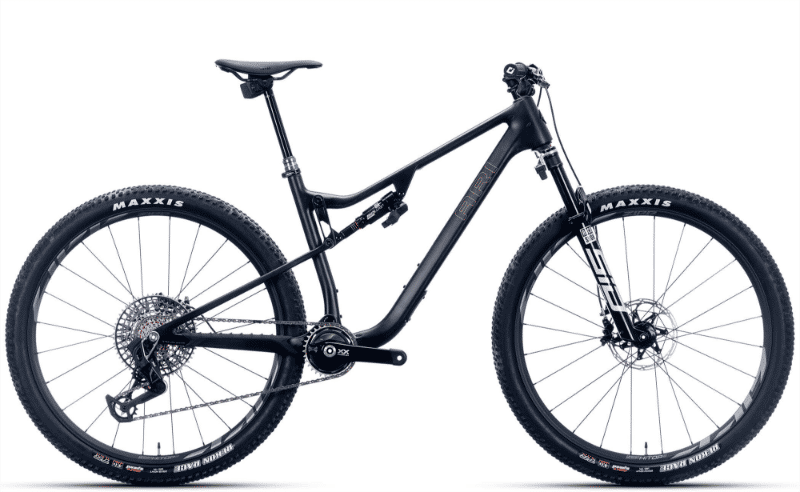

2025 Fezzari Signal Peak 3.0 geometry
Full frame geometry for the 2025 Fezzari Signal Peak 3.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597.9 | 425 | 76 | 66.5 | 100 | 574.1 | 400 | 748 | 35 | 430 | 1146.3 | 44 |
| M | 607.1 | 445 | 76 | 66.5 | 110 | 596.3 | 420 | 748 | 35 | 430 | 1170.2 | 44 |
| L | 616.3 | 470 | 76 | 66.5 | 120 | 623.6 | 450 | 748.2 | 35 | 430 | 1200.7 | 44 |
| XL | 630.1 | 505 | 76 | 66.5 | 135 | 662.1 | 500 | 758 | 35 | 430 | 1240.3 | 44 |
All measurements in millimetres unless marked (°) for angles.
