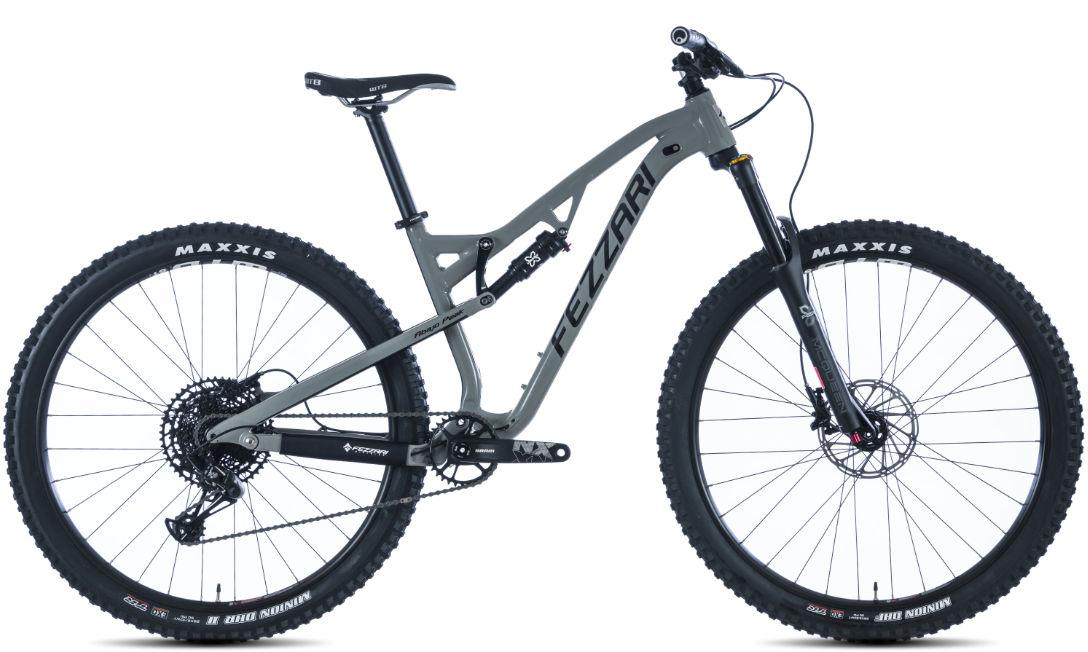

2019 Fezzari Abajo Peak MK II geometry
Full frame geometry for the 2019 Fezzari Abajo Peak MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 410 | 75.5 | 66.9 | 100 | 561 | 400 | 22 | 432 | 1135 |
| M | 610 | 435 | 75.5 | 66.9 | 105 | 588 | 420 | 22 | 432 | 1162 |
| L | 614 | 463 | 75.5 | 66.9 | 110 | 616 | 457 | 22 | 432 | 1192 |
| XL | 623 | 489 | 75.5 | 66.9 | 120 | 645 | 495 | 22 | 432 | 1222 |
All measurements in millimetres unless marked (°) for angles.
