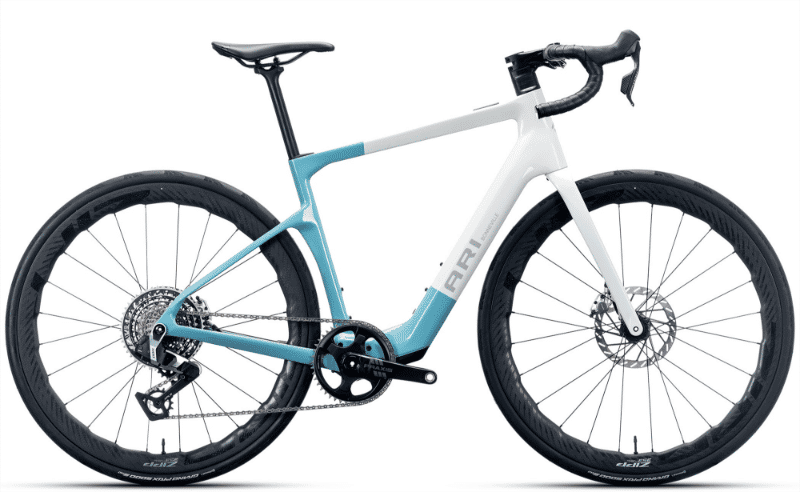

2025 Fezzari Bonneville geometry
Full frame geometry for the 2025 Fezzari Bonneville, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 | 368 | 74.5 | 70.5 | 131.3 | 517.8 | 388 | 711 | 76 | 421.5 | 1002.1 | 52 |
| S | 565 | 373 | 74.5 | 70.5 | 157.9 | 529.7 | 435 | 750 | 74 | 421.5 | 1012.1 | 52 |
| M | 585 | 380.2 | 74 | 70.5 | 179 | 547.7 | 460 | 771 | 74 | 421.5 | 1025.9 | 52 |
| L | 605 | 388 | 73.5 | 71.5 | 198 | 567.2 | 490 | 797 | 74 | 421.5 | 1035.5 | 52 |
| XL | 630 | 395 | 73.5 | 72 | 224.3 | 581.6 | 520 | 827 | 72 | 421.5 | 1046.3 | 52 |
All measurements in millimetres unless marked (°) for angles.
