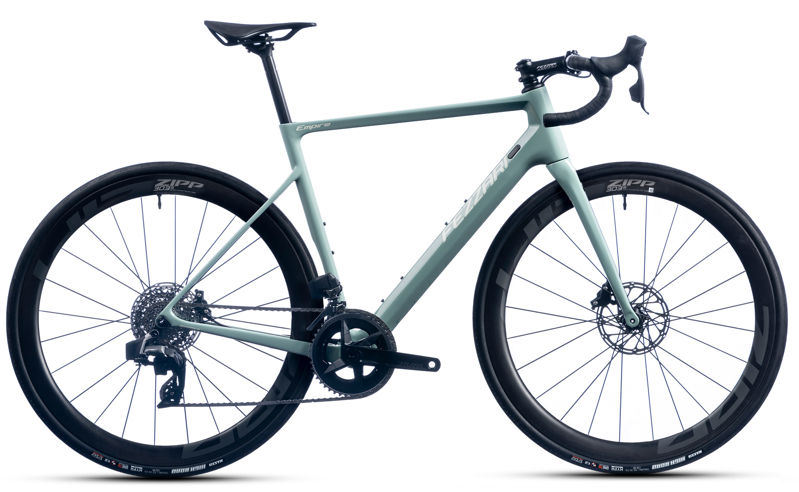

2020 Fezzari Empire geometry
Full frame geometry for the 2020 Fezzari Empire, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 371 | 75 | 71 | 115 | 510 | 452 | 726 | 72 | 410 | 975 | 45 |
| S | 533 | 382 | 74.5 | 71 | 130 | 530 | 482 | 751 | 72 | 410 | 990 | 45 |
| M | 563 | 388 | 74 | 71.5 | 160 | 550 | 513 | 776 | 72 | 410 | 1002 | 45 |
| L | 582 | 397 | 73.5 | 71.8 | 180 | 570 | 541 | 810 | 72 | 410 | 1014 | 45 |
| XL | 603 | 405 | 73 | 72.5 | 200 | 590 | 564 | 829 | 72 | 410 | 1024 | 45 |
All measurements in millimetres unless marked (°) for angles.
