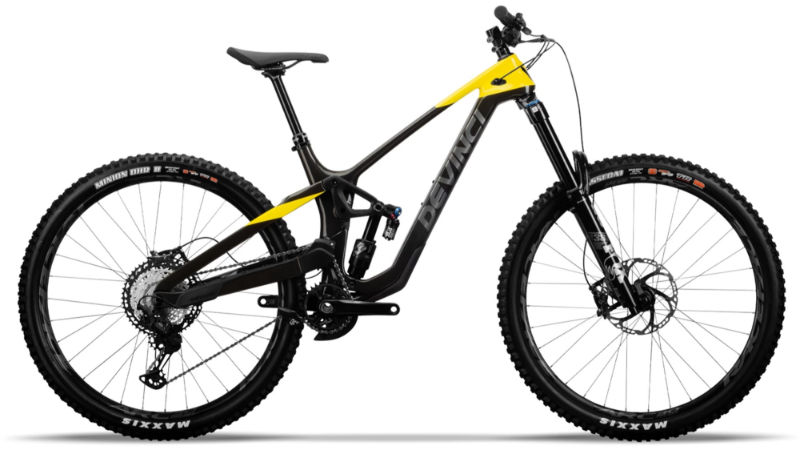

2026 Devinci Spartan geometry
Full frame geometry for the 2026 Devinci Spartan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 627 | 445 | 78.8 | 63.5 | 105 | 569 | 390 | 745 | 440 | 1234 | 44 |
| M | 636 | 465 | 78.5 | 63.5 | 115 | 594 | 420 | 745 | 440 | 1258 | 44 |
| L | 640 | 485 | 78 | 63.5 | 120 | 621 | 450 | 745 | 450 | 1291 | 44 |
| XL | 645 | 505 | 77.6 | 63.5 | 125 | 647 | 470 | 745 | 450 | 1313 | 44 |
All measurements in millimetres unless marked (°) for angles.
