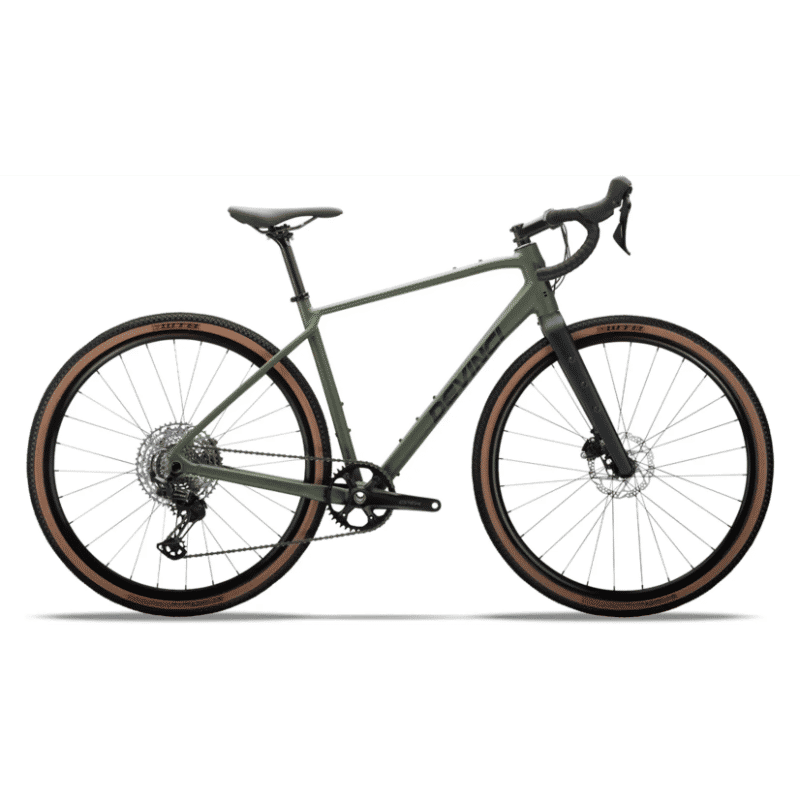

2026 Devinci Hatchet Vista geometry
Full frame geometry for the 2026 Devinci Hatchet Vista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 376 | 73.5 | 70.5 | 110 | 532 | 400 | 675 | 70 | 428 | 1014 |
| S | 559 | 383 | 73.5 | 70.5 | 140 | 548 | 440 | 710 | 70 | 428 | 1031 |
| M | 582 | 390 | 73.5 | 70.5 | 165 | 562 | 490 | 751 | 70 | 428 | 1047 |
| L | 610 | 397 | 73.5 | 70.5 | 195 | 577 | 530 | 786 | 70 | 428 | 1063 |
| XL | 634 | 404 | 73.5 | 70.5 | 220 | 598 | 570 | 821 | 70 | 428 | 1078 |
All measurements in millimetres unless marked (°) for angles.
