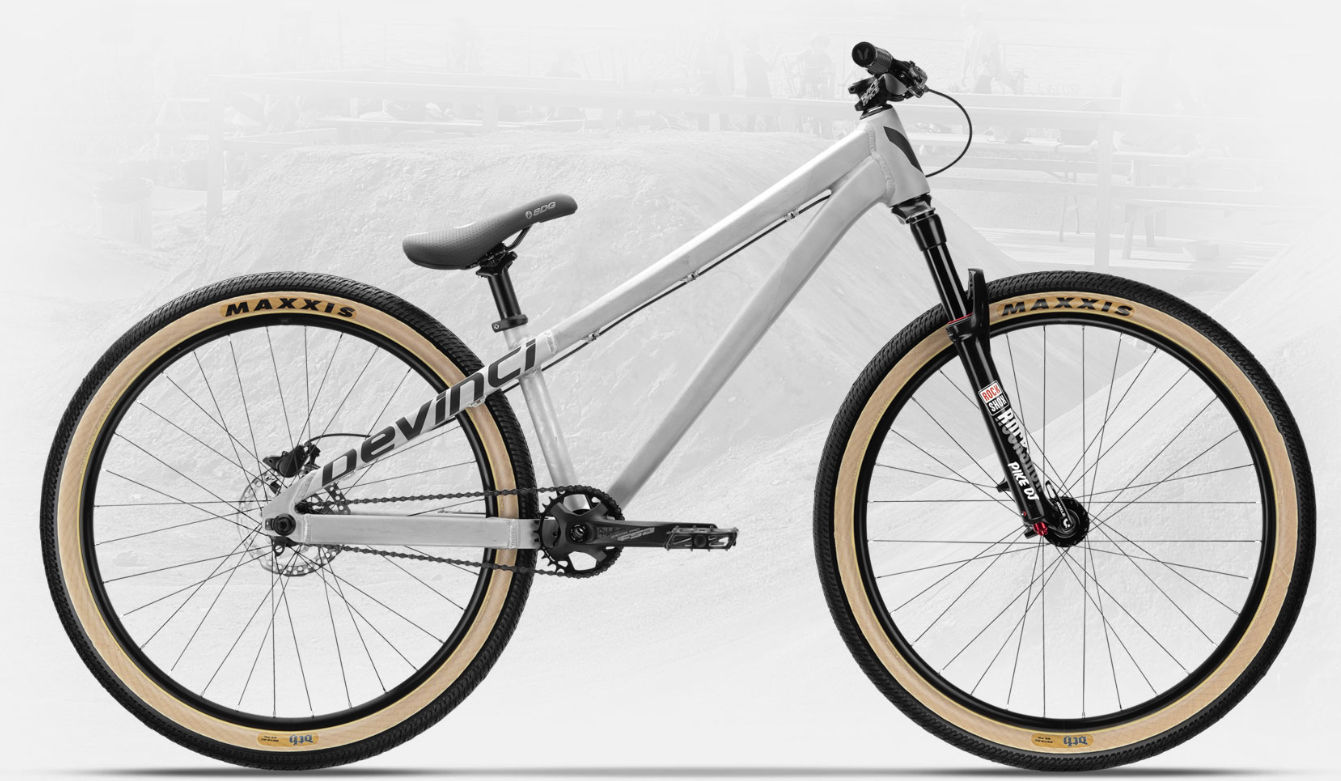

2019 Devinci Sabbath geometry
Full frame geometry for the 2019 Devinci Sabbath, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| OS | 565 | 405 | 72 | 69 | 125 | 589 | 305 | 670 | 400 | 1060 |
All measurements in millimetres unless marked (°) for angles.
