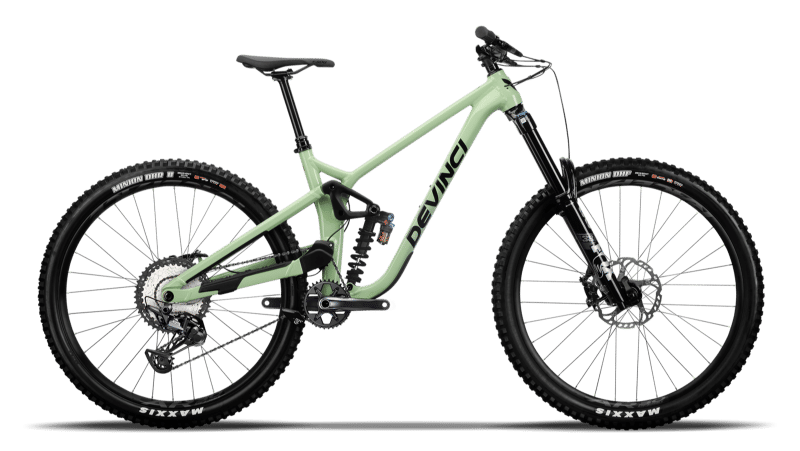

2026 Devinci Chainsaw geometry
Full frame geometry for the 2026 Devinci Chainsaw, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 449 | 79.9 | 62.9 | 95 | 558 | 405 | 425 | 1228 | 44 |
| M | 623 | 469 | 79.4 | 62.9 | 105 | 586 | 435 | 430 | 1257 | 44 |
| L | 632 | 494 | 78.9 | 62.9 | 115 | 619 | 450 | 435 | 1292 | 44 |
| XL | 641 | 519 | 78.4 | 62.9 | 125 | 651 | 470 | 440 | 1327 | 44 |
All measurements in millimetres unless marked (°) for angles.
