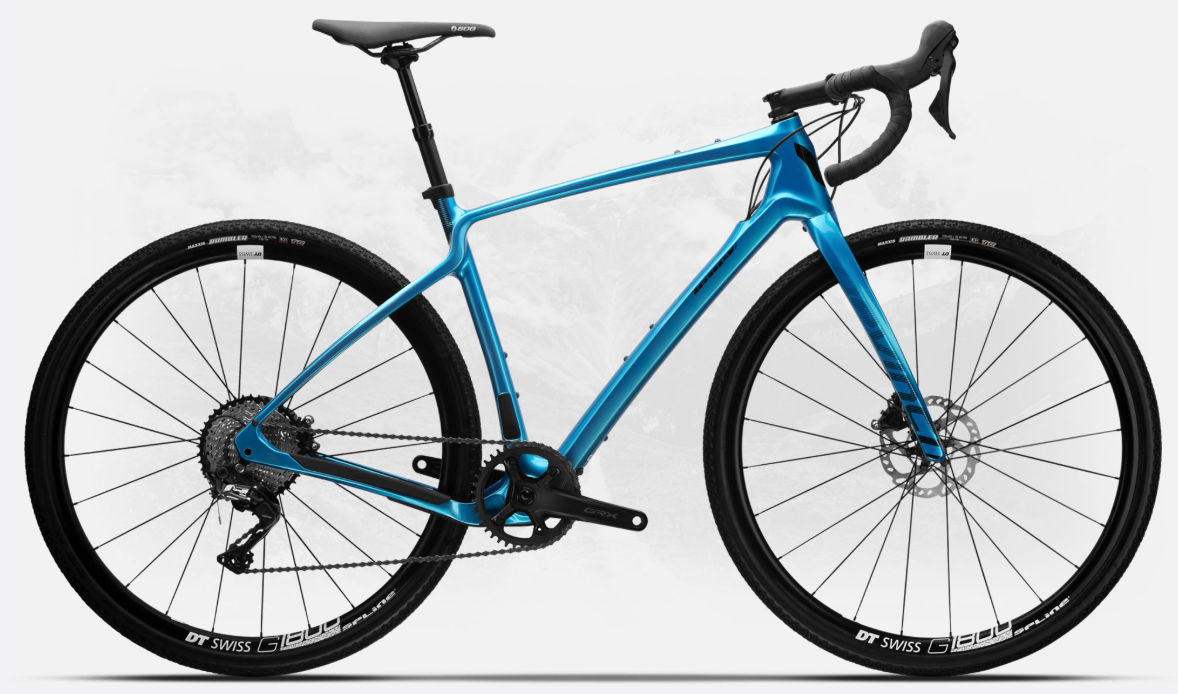

2019 Devinci Hatchet Carbon MKII geometry
Full frame geometry for the 2019 Devinci Hatchet Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS/50 | 519 | 381 | 74 | 70 | 100 | 530 | 400 | 686 | 430 | 1022 |
| S/52 | 544 | 388 | 74 | 70.5 | 130 | 545 | 440 | 716 | 430 | 1035 |
| M/54 | 575 | 395 | 73.5 | 71 | 155 | 565 | 490 | 747 | 430 | 1046 |
| L/57 | 603 | 402 | 73 | 71 | 185 | 586 | 530 | 780 | 430 | 1062 |
| XL/60 | 629 | 409 | 73 | 71.5 | 210 | 601 | 570 | 814 | 430 | 1073 |
All measurements in millimetres unless marked (°) for angles.
