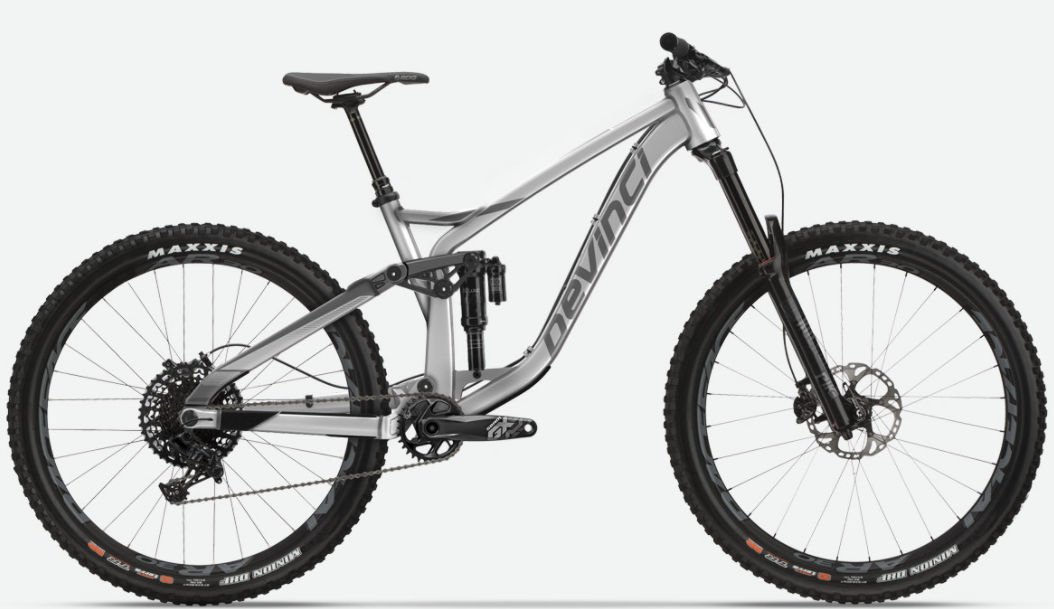

2018 Devinci Spartan geometry
Full frame geometry for the 2018 Devinci Spartan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 425 | 74.5 | 65 | 105 | 581 | 390 | 724 | 430 | 1176 |
| M | 615 | 445 | 74.5 | 65 | 115 | 605 | 420 | 735 | 430 | 1200 |
| L | 625 | 465 | 74.5 | 65 | 125 | 628 | 455 | 739 | 430 | 1224 |
| XL | 634 | 485 | 74.5 | 65 | 135 | 652 | 495 | 755 | 430 | 1249 |
All measurements in millimetres unless marked (°) for angles.
