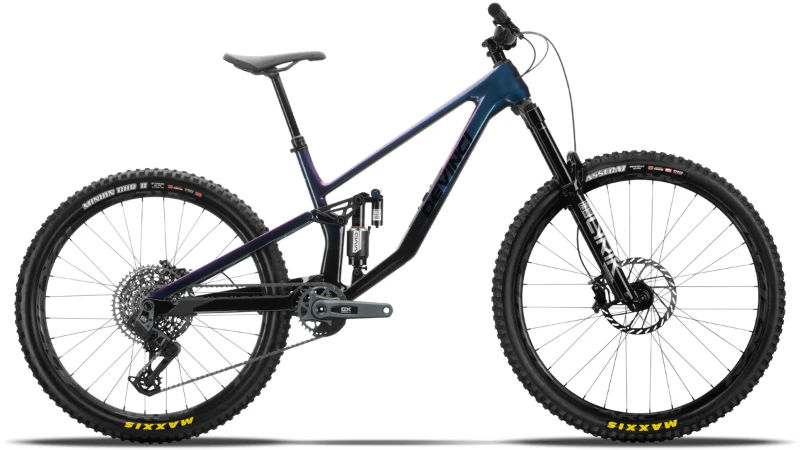

2026 Devinci Troy Carbon geometry
Full frame geometry for the 2026 Devinci Troy Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 440 | 78.1 | 64 | 95 | 568 | 390 | 708 | 432 | 1204 |
| M | 622 | 460 | 77.8 | 64 | 105 | 594 | 420 | 708 | 432 | 1228 |
| L | 631 | 480 | 76.8 | 64 | 115 | 631 | 450 | 708 | 437 | 1258 |
| XL | 640 | 500 | 76.2 | 64 | 125 | 656 | 470 | 708 | 442 | 1287 |
All measurements in millimetres unless marked (°) for angles.
