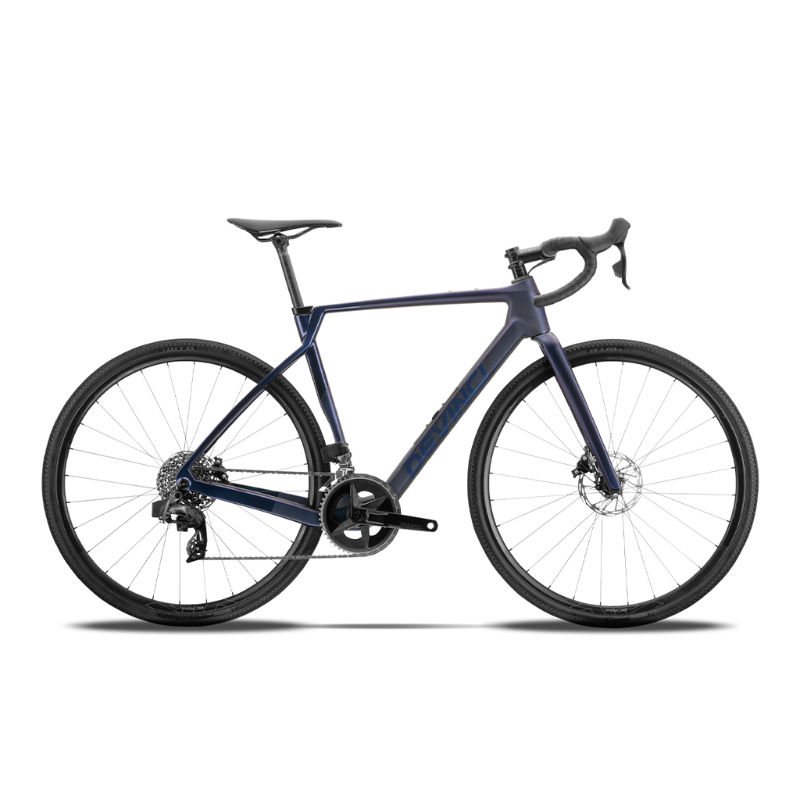

2026 Devinci Hatchet Pro geometry
Full frame geometry for the 2026 Devinci Hatchet Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 537 | 383 | 74 | 71.5 | 110 | 537 | 475 | 759 | 75 | 425 | 1013 |
| M | 563 | 390 | 73.5 | 72 | 135 | 557 | 520 | 796 | 75 | 425 | 1024 |
| L | 593 | 397 | 73 | 72.5 | 165 | 578 | 560 | 831 | 75 | 425 | 1036 |
| XL | 617 | 404 | 73 | 72.5 | 190 | 593 | 600 | 865 | 75 | 425 | 1051 |
All measurements in millimetres unless marked (°) for angles.
