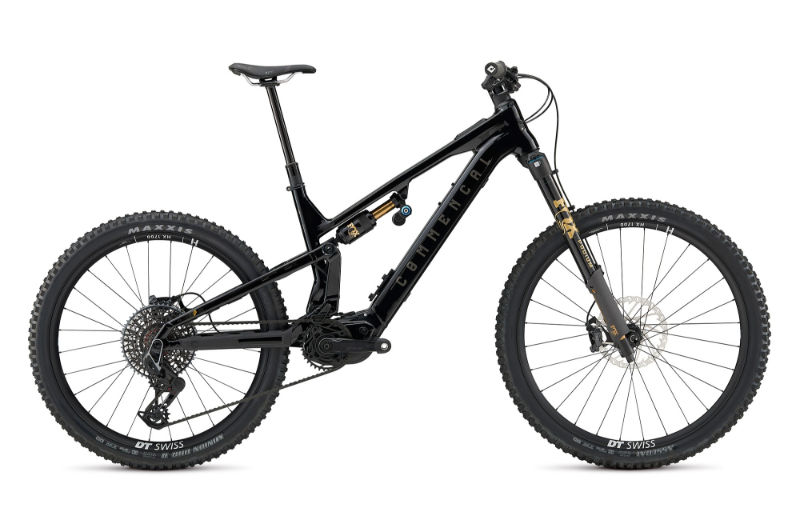

2026 Commencal Meta Power SX Avinox geometry
Full frame geometry for the 2026 Commencal Meta Power SX Avinox, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 638.3 | 440 | 77.9 | 64 | 130 | 576.6 | 380 | 445 | 1236 | 44 |
| M | 642.3 | 460 | 77.9 | 64 | 134.5 | 597.7 | 420 | 445 | 1258 | 44 |
| L | 647.3 | 485 | 77.9 | 64 | 140 | 624.1 | 440 | 450 | 1290.4 | 44 |
| XL | 647.3 | 510 | 77.9 | 64 | 140 | 649.1 | 460 | 450 | 1315.4 | 44 |
All measurements in millimetres unless marked (°) for angles.
