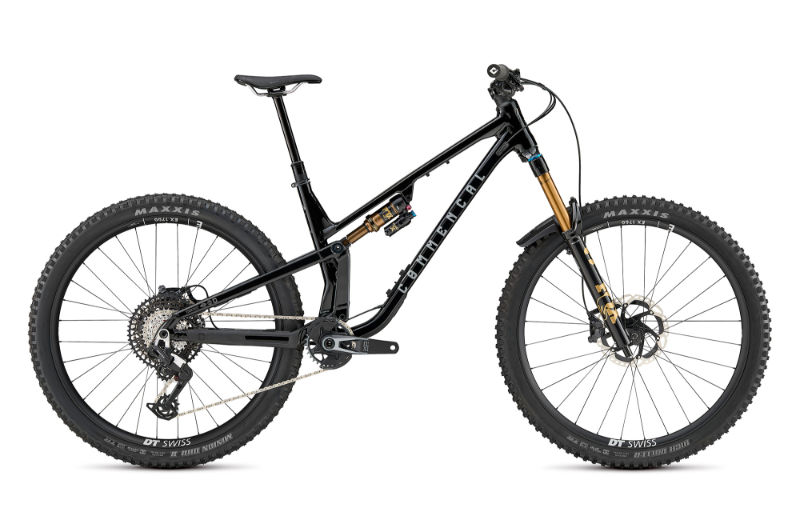

2026 Commencal Meta V5 geometry
Full frame geometry for the 2026 Commencal Meta V5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 626.3 | 435.4 | 77.7 | 64.1 | 120 | 572.9 | 380 | 25.7 | 436.8 | 1215 |
| M | 630.8 | 455.4 | 77.7 | 64.1 | 125 | 593.9 | 420 | 25.8 | 436.8 | 1237 |
| L | 635.4 | 475.5 | 77.7 | 64.1 | 130 | 614.8 | 440 | 25.8 | 441.8 | 1271 |
| XL | 639.9 | 495.4 | 77.7 | 64.1 | 135 | 635.8 | 460 | 25.9 | 441.8 | 1293 |
All measurements in millimetres unless marked (°) for angles.
