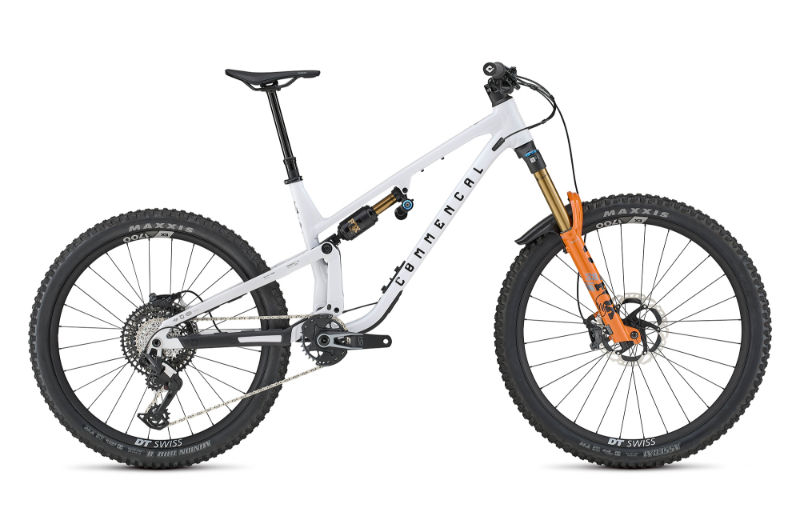

2026 Commencal Meta SX V5 geometry
Full frame geometry for the 2026 Commencal Meta SX V5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 633.8 | 440 | 77.5 | 64 | 115 | 579.4 | 380 | 4 | 442 | 1230.8 | 44 |
| M | 638.3 | 460 | 77.5 | 64 | 120 | 600.6 | 420 | 4 | 442 | 1253 | 44 |
| L | 642.8 | 480 | 77.5 | 64 | 125 | 621.9 | 440 | 4 | 447 | 1280.2 | 44 |
| XL | 647.3 | 500 | 77.5 | 64 | 130 | 643.2 | 460 | 4 | 447 | 1302.4 | 44 |
All measurements in millimetres unless marked (°) for angles.
