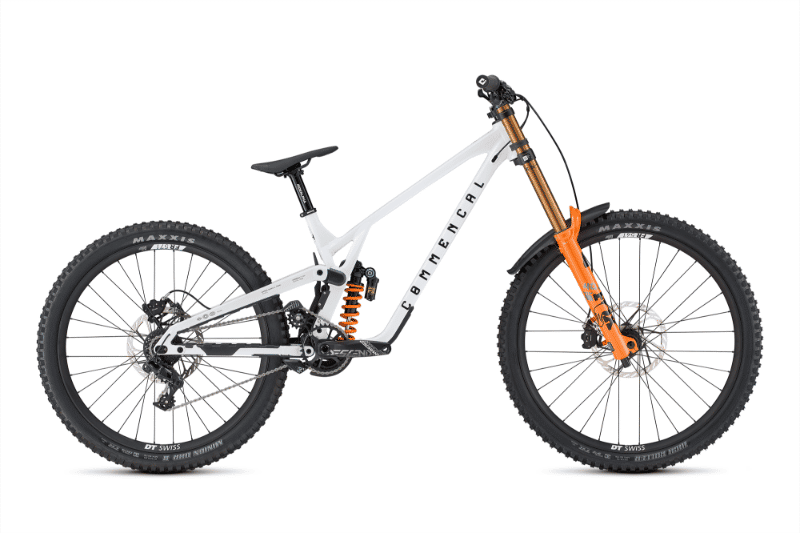

2026 Commencal Supreme DH V5 geometry
Full frame geometry for the 2026 Commencal Supreme DH V5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 605 | 401 | 76.4 | 63.9 | 112 | 548 | 370 | 442 | 1196 | 52 |
| L | 649 | 484 | 75.7 | 63.3 | 112 | 649 | 370 | 454 | 1311 | 52 |
| M | 649 | 456 | 75.7 | 63.3 | 112 | 621 | 370 | 454 | 1283 | 52 |
| S | 649 | 431 | 75.7 | 63.3 | 112 | 596 | 370 | 442 | 1246 | 52 |
| XL | 649 | 504 | 75.7 | 63.3 | 112 | 669 | 370 | 454 | 1331 | 52 |
All measurements in millimetres unless marked (°) for angles.
