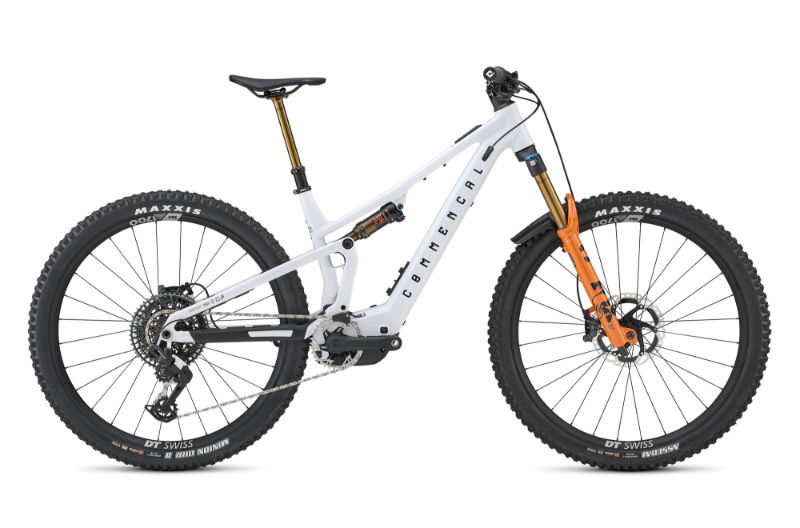

2026 Commencal T.E.M.P.O. Power geometry
Full frame geometry for the 2026 Commencal T.E.M.P.O. Power, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 426 | 76.3 | 65 | 115 | 576.5 | 380 | 27 | 445 | 1202.2 | 44 |
| M | 627.5 | 446 | 76.3 | 65 | 120 | 597.8 | 420 | 27 | 445 | 1224.4 | 44 |
| L | 632 | 466 | 76.3 | 65 | 125 | 619.1 | 440 | 27 | 445 | 1246.5 | 44 |
| XL | 636.5 | 486 | 76.3 | 65 | 130 | 640.4 | 460 | 27 | 445 | 1270.5 | 44 |
All measurements in millimetres unless marked (°) for angles.
