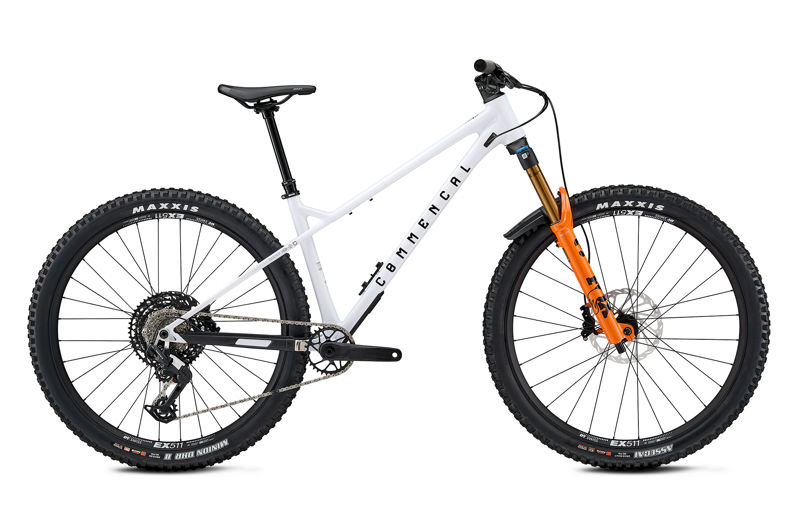

2025 Commencal Meta HT V3 geometry
Full frame geometry for the 2025 Commencal Meta HT V3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 646 | 435 | 75.5 | 64.5 | 120 | 602 | 420 | 50 | 430 | 1203 | 51 |
| L | 651 | 455 | 75.5 | 64.5 | 125 | 623 | 440 | 50 | 435 | 1230 | 51 |
| S | 651 | 410 | 75 | 64 | 115 | 584 | 380 | 40 | 425 | 1171 | 44 |
| XL | 655 | 480 | 75.5 | 64.5 | 130 | 649 | 460 | 50 | 440 | 1262 | 51 |
All measurements in millimetres unless marked (°) for angles.
