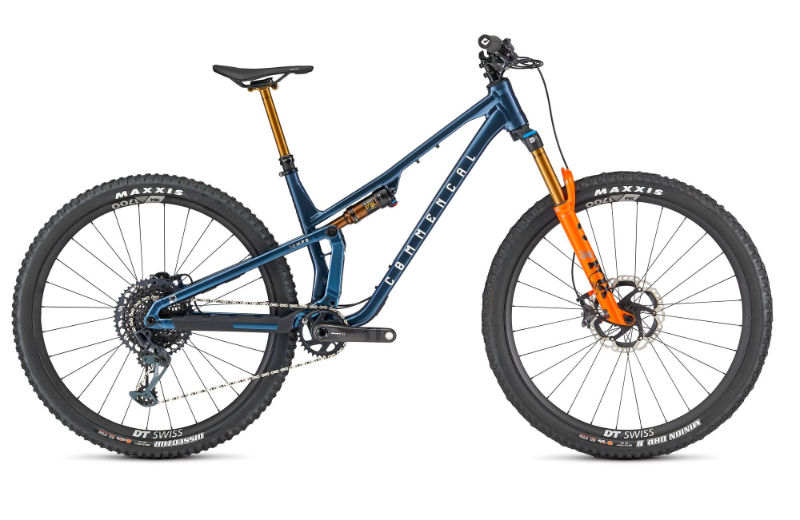

2026 Commencal T.E.M.P.O. geometry
Full frame geometry for the 2026 Commencal T.E.M.P.O., size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 624 | 430 | 76.6 | 65.5 | 115 | 579 | 380 | 35 | 435 | 1190 | 51 |
| M | 628.5 | 450 | 76.6 | 65.5 | 120 | 600 | 420 | 35 | 435 | 1211.5 | 51 |
| L | 633 | 470 | 76.6 | 65.5 | 125 | 621.5 | 440 | 35 | 440 | 1238.5 | 51 |
| XL | 637.5 | 490 | 76.6 | 65.5 | 130 | 642.9 | 460 | 35 | 440 | 1261 | 51 |
All measurements in millimetres unless marked (°) for angles.
