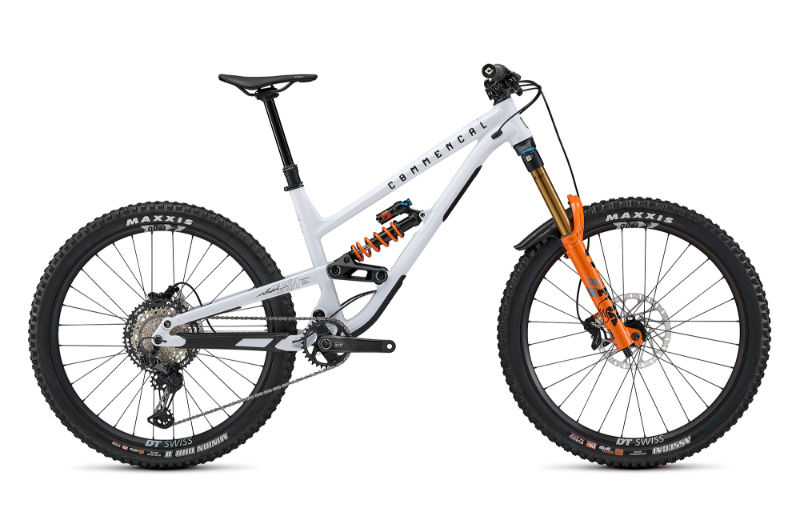

2026 Commencal Clash geometry
Full frame geometry for the 2026 Commencal Clash, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 619 | 445 | 77.2 | 64 | 110 | 586 | 380 | 12 | 434 | 1216 | 37 |
| M | 624 | 465 | 77.2 | 64 | 115 | 607 | 418 | 12 | 434 | 1238 | 37 |
| L | 628 | 490 | 77.2 | 64 | 120 | 633 | 440 | 12 | 434 | 1265 | 37 |
| XL | 635 | 520 | 77.1 | 64.5 | 125 | 666 | 465 | 12 | 434 | 1292 | 37 |
All measurements in millimetres unless marked (°) for angles.
