2026 Commencal · DH

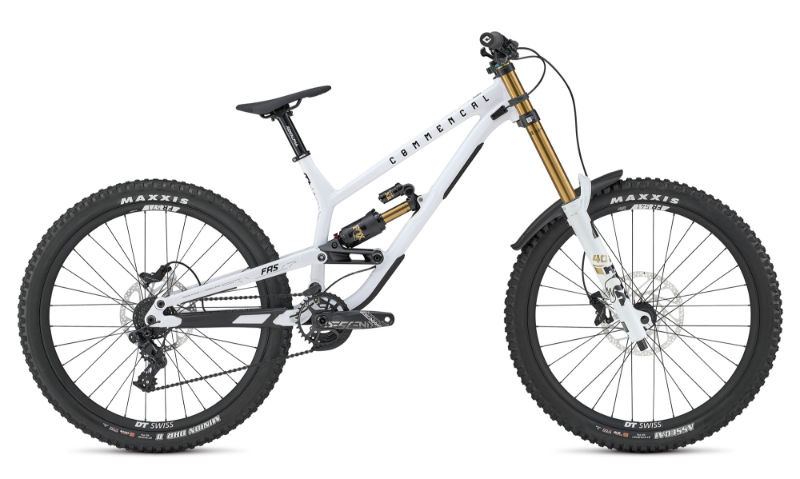

2026 Commencal FRS geometry
Full frame geometry for the 2026 Commencal FRS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 613 | 490 | 63 | 64 | 125 | 638 | 420 | -7 | 435 | 1273 |
| M | 613 | 465 | 63 | 64 | 120 | 614 | 420 | -7 | 435 | 1248 |
| S | 613 | 440 | 63 | 64 | 120 | 589 | 420 | -7 | 435 | 1223 |
| XL | 613 | 510 | 63 | 64 | 125 | 660 | 420 | -7 | 435 | 1293 |
All measurements in millimetres unless marked (°) for angles.
