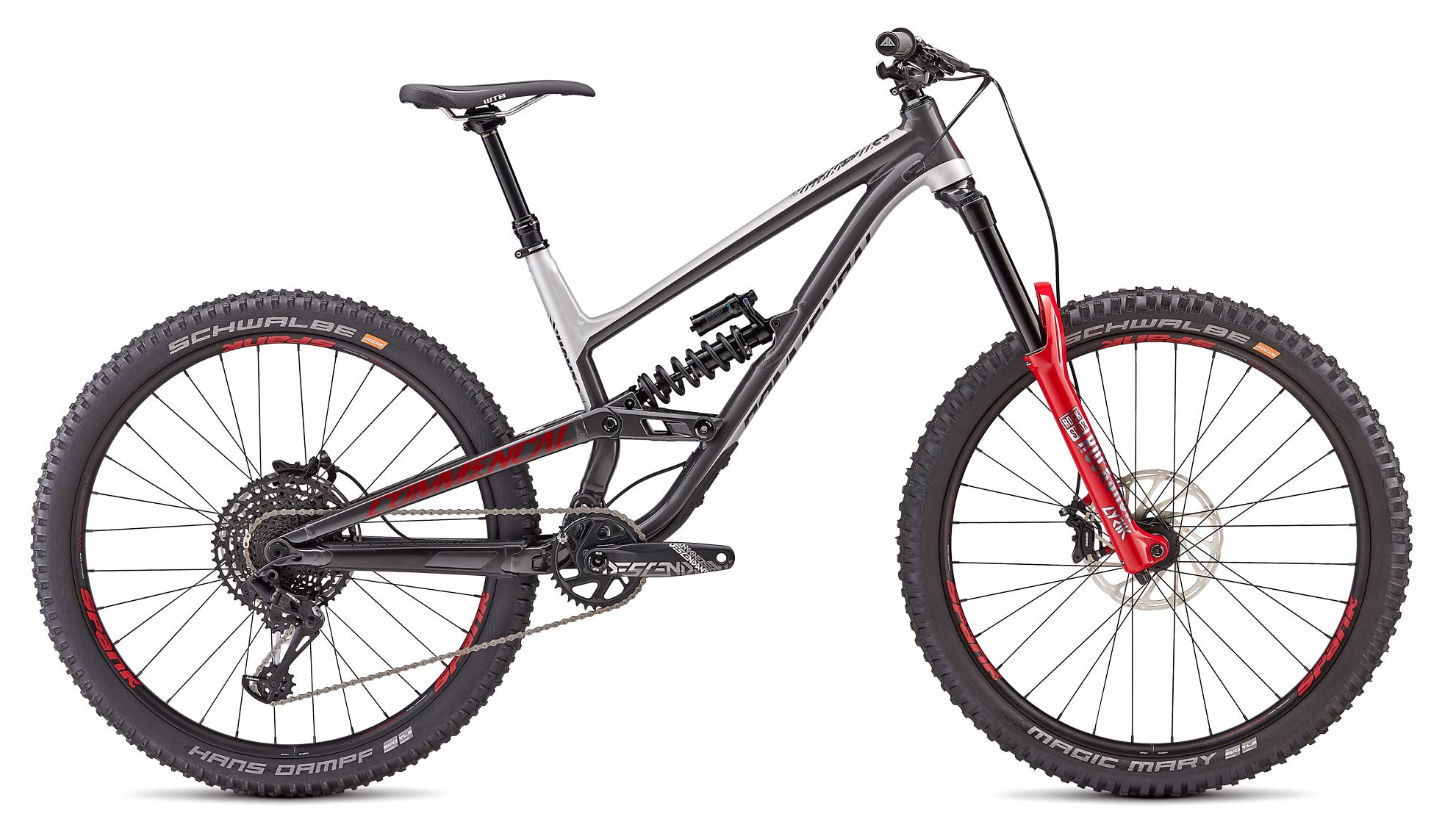

2019 Commencal Clash geometry
Full frame geometry for the 2019 Commencal Clash, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 422 | 75.5 | 65 | 110 | 581 | 395 | 740 | 12 | 434 | 1184 |
| M | 608 | 442 | 75.5 | 65 | 115 | 603 | 440 | 745 | 12 | 434 | 1206 |
| L | 612 | 467 | 75.5 | 65 | 125 | 631 | 455 | 745 | 12 | 434 | 1235 |
| XL | 616 | 497 | 75.5 | 65 | 125 | 663 | 485 | 750 | 12 | 434 | 1267 |
All measurements in millimetres unless marked (°) for angles.
