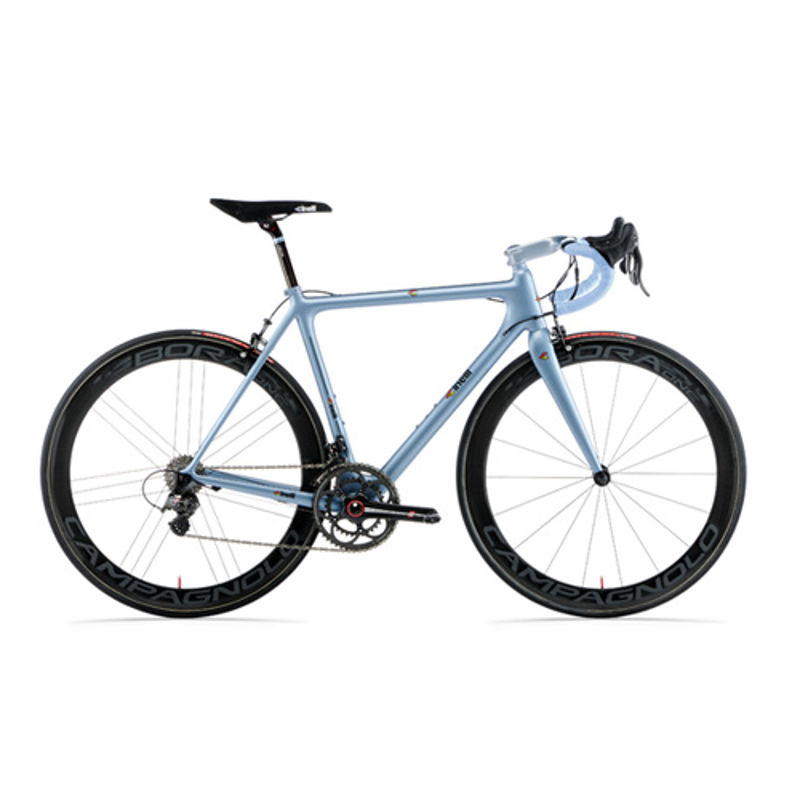

2020 Cinelli Laser Mia geometry

Name: 2020 Cinelli Laser Mia
Brand: Cinelli

Full frame geometry for the 2020 Cinelli Laser Mia, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
48	495	373	74.5	71.5	95	500	500	733	70	567	405	961	45
49	501	376	74.5	71.5	100	505	510	743	70	568	405	962	45
50	512	378	74.5	71.5	110	510	520	753	70	569	405	964	45
51	522	378	74.5	72	120	515	530	762	70	572	405	967	45
52	533	379	74.5	72.5	130	520	540	772	70	572	405	967	45
53	543	380	74.3	72.5	140	525	550	781	70	575	405	970	45
54	552	381	74.2	73	150	530	560	790	70	580	405	975	45
55	562	384	74	73	160	535	570	799	70	585	405	980	45
56	571	386	73.5	73	170	545	580	809	70	590	405	985	45
57	581	387	73.5	73	185	550	590	818	70	595	405	990	45
58	591	389	73	73	190	550	600	827	70	600	405	995	45
59	600	397	73	73	200	565	610	837	70	610	405	1005	45
60	611	403	73	73	210	570	620	847	70	614	405	1009	45
61	621	404	73	73	220	580	630	855	70	618	405	1013	45
62	628	407	73	73.5	225	590	640	865	70	618	405	1013	45

All measurements in millimetres unless marked (°) for angles.
