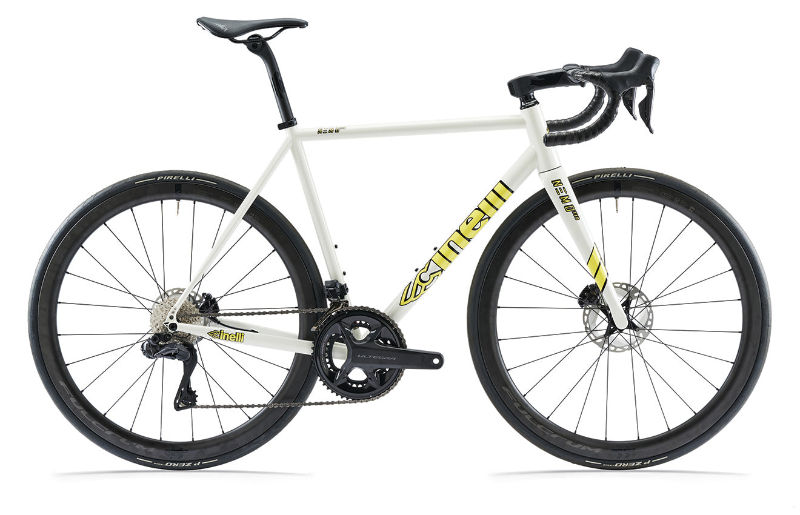

2026 Cinelli Nemo Tig Road geometry
Full frame geometry for the 2026 Cinelli Nemo Tig Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 369 | 74.5 | 71 | 110 | 510 | 480 | 70 | 572 | 410 | 972 | 45 |
| S | 530 | 373 | 74 | 71.5 | 130 | 525 | 510 | 70 | 579 | 410 | 978 | 45 |
| M | 548 | 383 | 73.5 | 72.5 | 145 | 545 | 540 | 70 | 585 | 410 | 985 | 45 |
| L | 568 | 387 | 73.5 | 73 | 165 | 555 | 560 | 70 | 590 | 410 | 990 | 45 |
| XL | 588 | 395 | 73 | 73 | 185 | 575 | 590 | 70 | 605 | 415 | 1010 | 45 |
| XXL | 613 | 402 | 73 | 73.5 | 210 | 590 | 610 | 70 | 614 | 415 | 1019 | 45 |
All measurements in millimetres unless marked (°) for angles.
