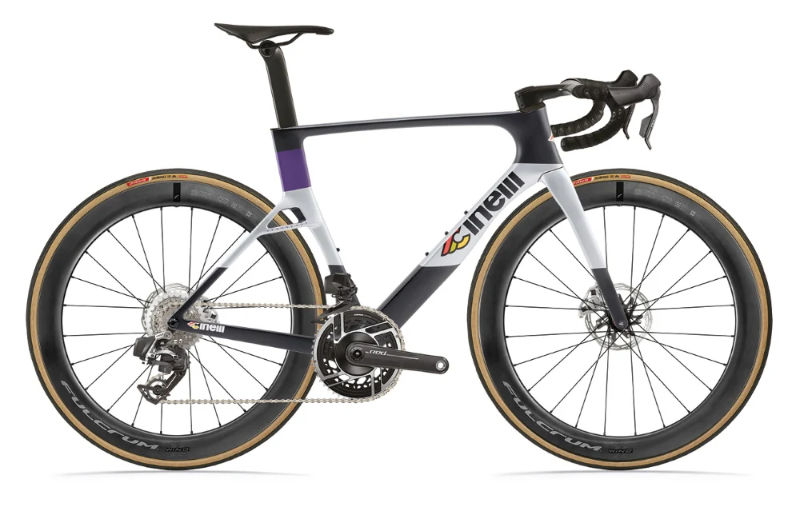

2026 Cinelli Aeroscoop geometry
Full frame geometry for the 2026 Cinelli Aeroscoop, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 478 | 359 | 73.5 | 73 | 95 | 507 | 520 | 50 | 543 | 377 | 914 |
| S | 497 | 384 | 74 | 73 | 115 | 535 | 550 | 50 | 572 | 377 | 944 |
| M | 514 | 410 | 74 | 73.5 | 130 | 567 | 570 | 50 | 597 | 377 | 968 |
| L | 530 | 435 | 74 | 74 | 145 | 598 | 590 | 50 | 622 | 377 | 993 |
| XL | 545 | 460 | 73.5 | 74 | 160 | 632 | 605 | 50 | 651 | 377 | 1022 |
All measurements in millimetres unless marked (°) for angles.
