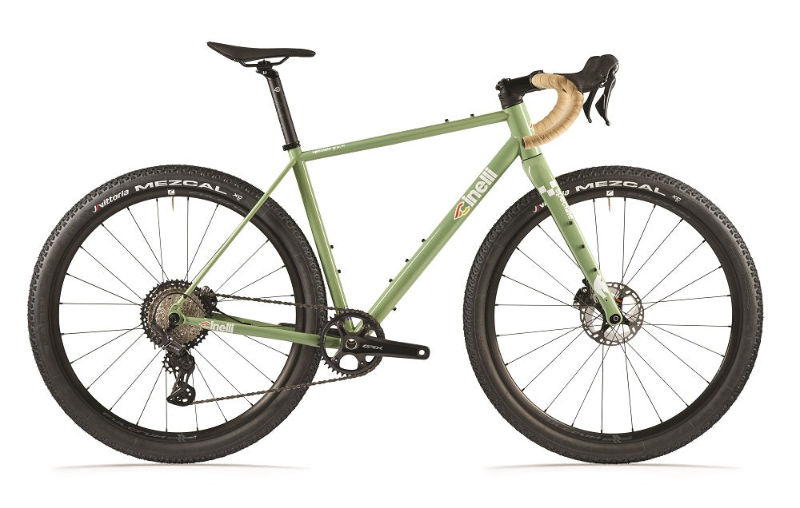

2026 Cinelli Speciale Gravel geometry
Full frame geometry for the 2026 Cinelli Speciale Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 563 | 394 | 74.5 | 70 | 117 | 550 | 490 | 65 | 634 | 435 | 1061 | 52 |
| XS | 563 | 382 | 74.5 | 70 | 117 | 538 | 450 | 65 | 622 | 435 | 1049 | 52 |
| M | 577 | 402 | 74 | 70 | 128 | 567 | 510 | 65 | 647 | 435 | 1073 | 52 |
| L | 590 | 411 | 73.5 | 70 | 146 | 586 | 530 | 65 | 661 | 438 | 1088 | 52 |
| XL | 602 | 416 | 73 | 70 | 158 | 600 | 550 | 65 | 670 | 438 | 1097 | 52 |
All measurements in millimetres unless marked (°) for angles.
