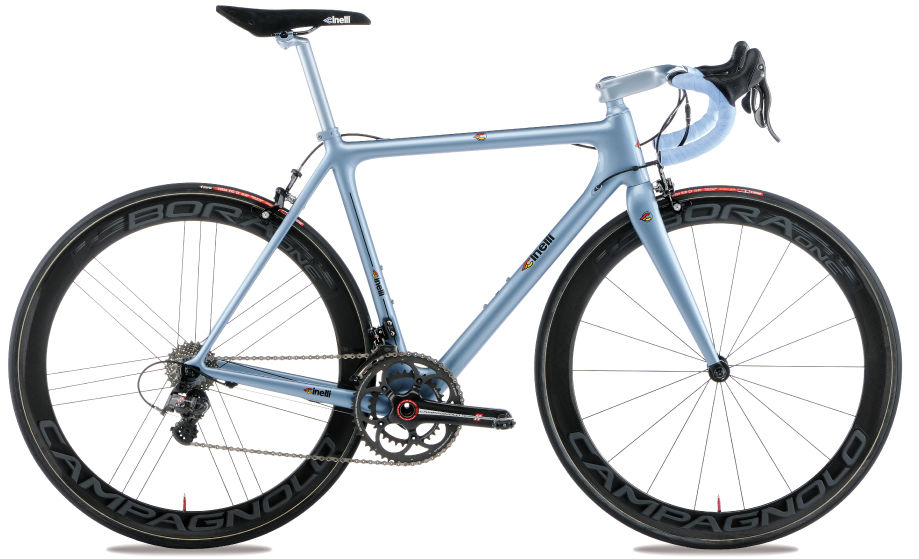

2016 Cinelli Laser Mia geometry

Name: 2016 Cinelli Laser Mia
Brand: Cinelli

Full frame geometry for the 2016 Cinelli Laser Mia, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
48	496	372	74.5	71.5	95	510	500	70	567	405	961	45
49	503	376	74.5	72	100	515	510	70	568	405	962	45
50	514	378	74.5	72.5	110	520	520	70	569	405	964	45
51	523	378	74.3	72.5	120	525	530	70	572	405	967	45
52	535	379	74.2	73	130	530	540	70	572	405	967	45
53	544	379	74	73	140	535	550	70	575	405	970	45
54	554	381	73.5	73	150	545	560	70	580	405	975	45
55	563	388	73.5	73	160	555	570	70	585	405	980	45
56	573	390	73.5	73	170	560	580	70	590	405	985	45
57	587	386	73	73	185	565	590	70	595	405	990	45
58	592	389	73	73	190	570	600	70	600	405	995	45
59	601	396	73	73	200	580	610	70	610	405	1005	45
60	613	403	73	73.5	210	590	620	70	614	405	1009	45
61	622	404	72.5	73.5	220	600	630	70	618	405	1013	45
62	629	407	72.5	74	225	605	640	70	618	405	1013	45

All measurements in millimetres unless marked (°) for angles.
