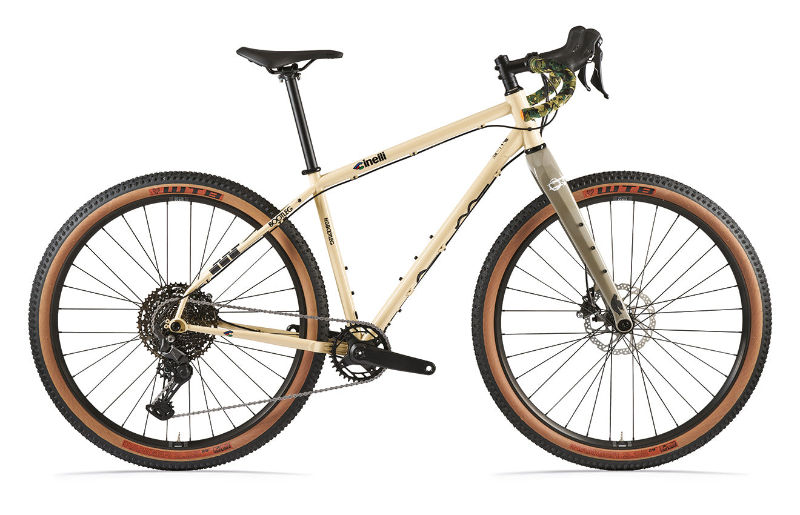

2027 Cinelli HoBootleg Geo geometry
Full frame geometry for the 2027 Cinelli HoBootleg Geo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 585 | 351 | 76.5 | 69 | 90 | 492 | 380 | 70 | 606 | 450 | 1047 |
| S | 608 | 365 | 76 | 69 | 115 | 517 | 400 | 70 | 629 | 450 | 1070 |
| M | 630 | 378 | 75.5 | 69 | 140 | 541 | 460 | 70 | 651 | 450 | 1092 |
| L | 646 | 390 | 75 | 69 | 155 | 563 | 510 | 70 | 668 | 450 | 1109 |
| XL | 669 | 410 | 74.5 | 69 | 180 | 598 | 550 | 70 | 697 | 450 | 1138 |
All measurements in millimetres unless marked (°) for angles.
