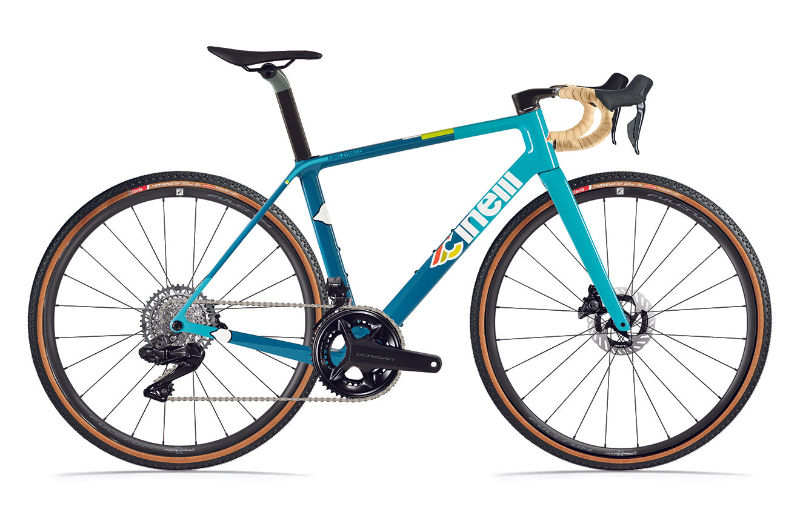

2026 Cinelli King Zydeco 2 geometry
Full frame geometry for the 2026 Cinelli King Zydeco 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 531 | 362 | 74 | 70.5 | 110 | 520 | 451 | 72 | 590 | 430 | 1009 | 52 |
| S | 549 | 377 | 73.5 | 71 | 125 | 540 | 461 | 72 | 601 | 430 | 1021 | 52 |
| M | 563 | 388 | 73 | 71.5 | 140 | 560 | 469 | 70 | 612 | 430 | 1032 | 52 |
| L | 579 | 397 | 72.5 | 72 | 155 | 580 | 479 | 70 | 621 | 430 | 1042 | 52 |
| XL | 600 | 408 | 72.5 | 72.5 | 175 | 600 | 497 | 70 | 636 | 430 | 1054 | 52 |
All measurements in millimetres unless marked (°) for angles.
