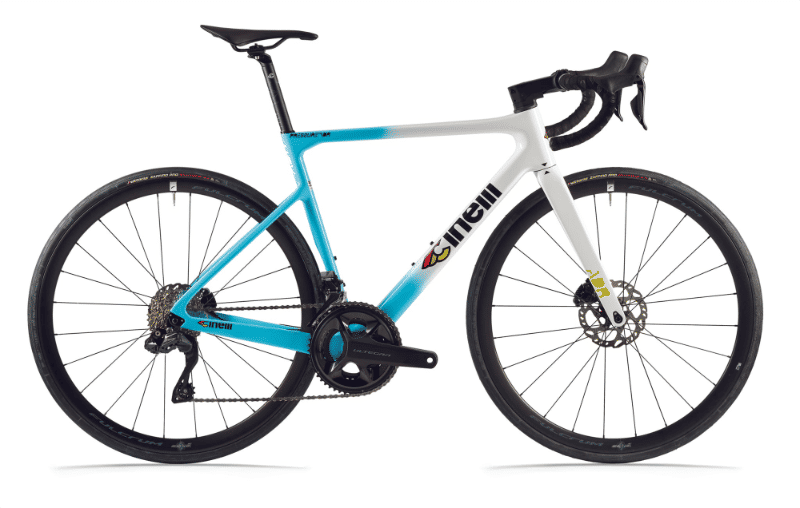

2026 Cinelli Pressure ADR geometry
Full frame geometry for the 2026 Cinelli Pressure ADR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 372 | 74 | 71 | 112 | 519 | 450 | 70 | 582 | 406 | 978 | 50 |
| S | 524 | 382 | 73.5 | 71.5 | 123 | 537 | 480 | 70 | 592 | 406 | 988 | 50 |
| M | 540 | 389 | 73 | 71.8 | 138 | 555 | 510 | 70 | 600 | 408 | 998 | 50 |
| L | 560 | 395 | 72.5 | 72 | 158 | 572 | 540 | 70 | 610 | 408 | 1008 | 50 |
| XL | 583 | 403 | 72 | 72.7 | 180 | 590 | 570 | 70 | 619 | 408 | 1017 | 50 |
All measurements in millimetres unless marked (°) for angles.
