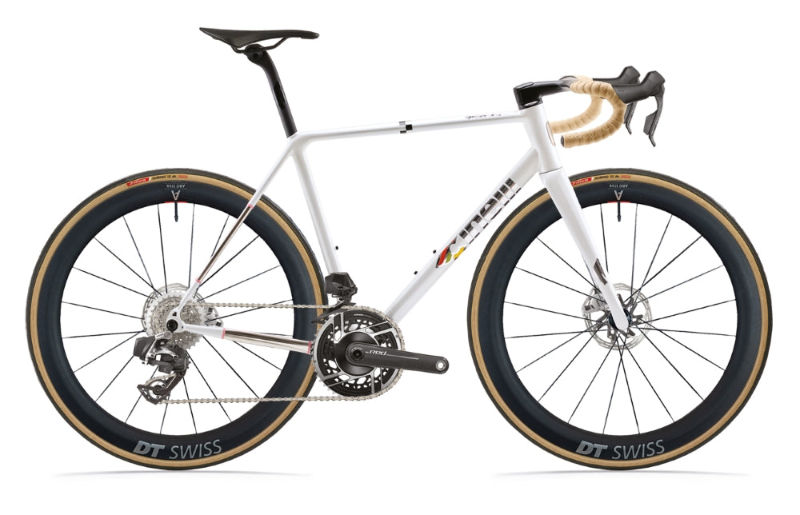

2026 Cinelli Speciale Corsa XCR geometry
Full frame geometry for the 2026 Cinelli Speciale Corsa XCR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 369 | 74.5 | 71 | 110 | 510 | 470 | 70 | 415 | 971 | 45 |
| S | 530 | 373 | 74 | 71.5 | 130 | 525 | 495 | 70 | 415 | 978 | 45 |
| M | 548 | 382 | 73.5 | 72.5 | 145 | 545 | 515 | 72 | 415 | 984 | 45 |
| L | 568 | 386 | 73.5 | 73 | 165 | 555 | 535 | 72 | 415 | 990 | 45 |
| XL | 588 | 395 | 73 | 73 | 185 | 575 | 565 | 72 | 415 | 1009 | 45 |
All measurements in millimetres unless marked (°) for angles.
