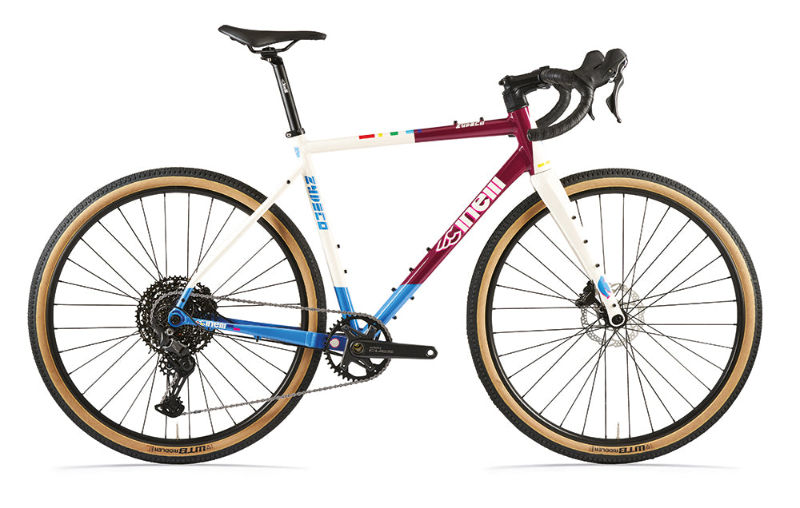

2026 Cinelli Zydeco Washboard Sport geometry
Full frame geometry for the 2026 Cinelli Zydeco Washboard Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544 | 375 | 74.5 | 71 | 125 | 490 | 526 | 70 | 597 | 440 | 1028 | 52 |
| S | 568 | 380 | 74.5 | 71 | 140 | 510 | 535 | 70 | 607 | 440 | 1037 | 52 |
| M | 577 | 387 | 74 | 71 | 160 | 540 | 552 | 70 | 521 | 440 | 1051 | 52 |
| L | 596 | 396 | 73.5 | 71 | 180 | 560 | 573 | 70 | 636 | 440 | 1066 | 52 |
| XL | 615 | 405 | 73.5 | 71 | 200 | 590 | 587 | 70 | 651 | 440 | 1082 | 52 |
All measurements in millimetres unless marked (°) for angles.
