2019 Cinelli · A

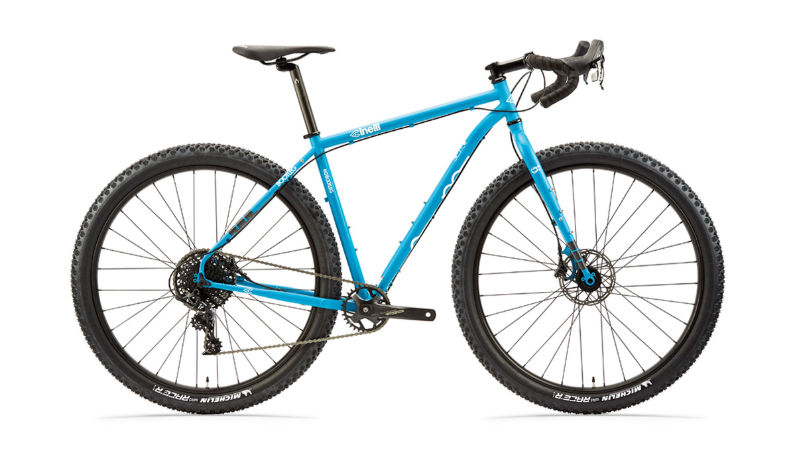

2019 Cinelli Hobootleg Geo geometry
Full frame geometry for the 2019 Cinelli Hobootleg Geo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 620 | 362 | 74 | 70 | 120 | 540 | 400 | 770 | 70 | 611 | 450 | 1052 | 42 |
| M | 644 | 378 | 73.5 | 71 | 140 | 570 | 460 | 812 | 70 | 625 | 450 | 1065 | 42 |
| L | 662 | 398 | 73 | 71 | 160 | 600 | 510 | 847 | 70 | 650 | 450 | 1090 | 42 |
| XL | 681 | 405 | 72.5 | 71 | 180 | 620 | 550 | 878 | 70 | 664 | 450 | 1104 | 42 |
All measurements in millimetres unless marked (°) for angles.
