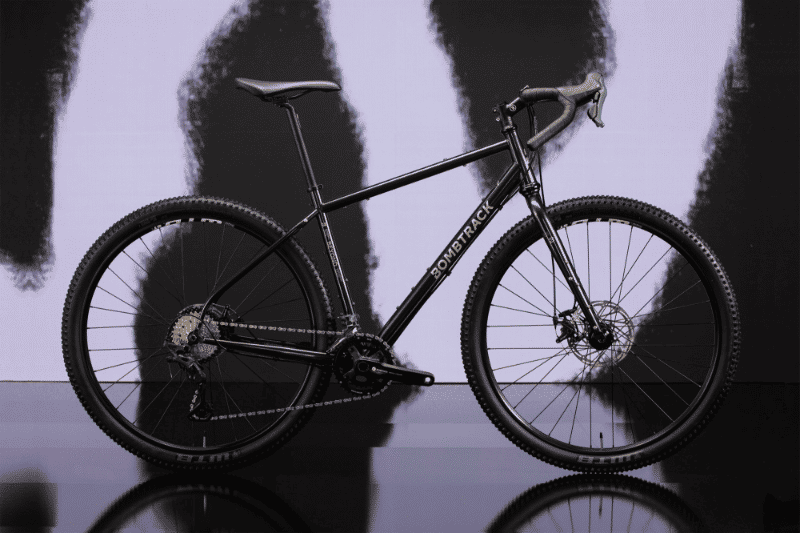

2025 Bombtrack Beyond geometry
Full frame geometry for the 2025 Bombtrack Beyond, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 538 | 349 | 75 | 70 | 100 | 494 | 400 | 727 | 55 | 581 | 425 | 1000 | 50 | 73 |
| S | 568 | 364 | 74.5 | 70.5 | 130 | 522 | 440 | 761 | 55 | 602 | 425 | 1021 | 50 | 70 |
| M | 604 | 379 | 73.5 | 71 | 150 | 558 | 480 | 802 | 70 | 620 | 455 | 1065 | 50 | 73 |
| L | 646 | 392 | 73 | 72 | 190 | 590 | 520 | 842 | 70 | 636 | 455 | 1082 | 50 | 67 |
| XL | 675 | 411 | 72.5 | 72 | 220 | 623 | 560 | 873 | 70 | 663 | 455 | 1109 | 50 | 67 |
All measurements in millimetres unless marked (°) for angles.
