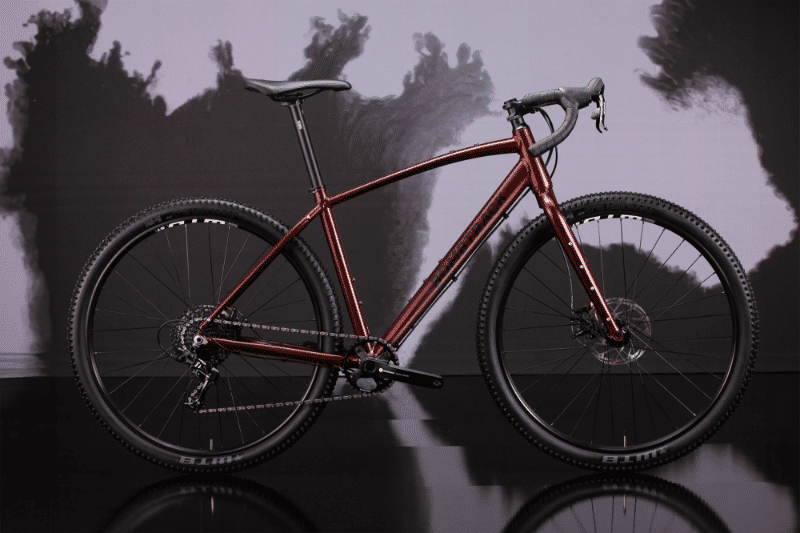

2025 Bombtrack Beyond AL geometry
Full frame geometry for the 2025 Bombtrack Beyond AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 569 | 382 | 74 | 70 | 140 | 546 | 440 | 775 | 60 | 627 | 420 | 1040 | 53 | 70 |
| M | 604 | 394 | 74 | 70.5 | 160 | 567 | 480 | 821 | 74 | 642 | 445 | 1077 | 53 | 75 |
| L | 642 | 413 | 74 | 70.5 | 200 | 597 | 520 | 859 | 74 | 674 | 445 | 1109 | 53 | 75 |
| XL | 670 | 434 | 74 | 70.5 | 230 | 626 | 560 | 893 | 74 | 705 | 445 | 1140 | 53 | 75 |
All measurements in millimetres unless marked (°) for angles.
