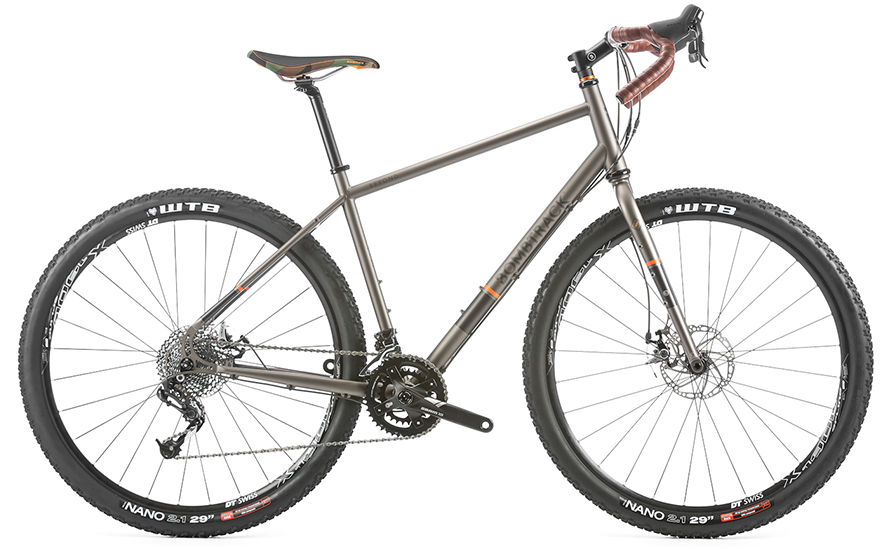

2016 Bombtrack Beyond geometry
Full frame geometry for the 2016 Bombtrack Beyond, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 379 | 74 | 71 | 160 | 555 | 475 | 791 | 70 | 455 | 1063 | 45 |
| M | 640 | 385 | 73.5 | 72 | 185 | 575 | 495 | 813 | 70 | 455 | 1067 | 45 |
| L | 664 | 396 | 73 | 72 | 210 | 600 | 525 | 839 | 70 | 455 | 1086 | 45 |
| XL | 688 | 396 | 71.5 | 72 | 235 | 625 | 550 | 861 | 70 | 455 | 1092 | 45 |
All measurements in millimetres unless marked (°) for angles.
