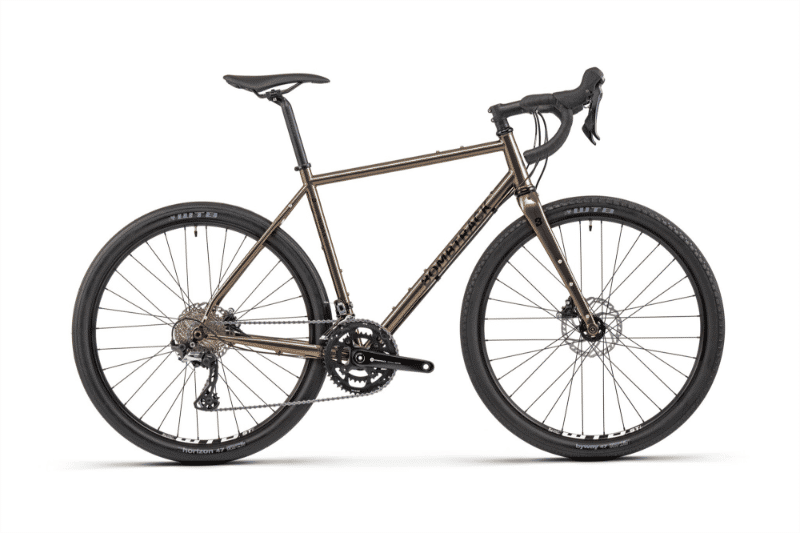

2025 Bombtrack Audax geometry
Full frame geometry for the 2025 Bombtrack Audax, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 361 | 74.5 | 71.5 | 110 | 509 | 470 | 746 | 68 | 577 | 420 | 987 | 53 | 59 |
| S | 553 | 373 | 74.5 | 71.5 | 130 | 526 | 490 | 765 | 68 | 595 | 420 | 1005 | 53 | 59 |
| M | 571 | 383 | 74 | 72 | 150 | 547 | 520 | 794 | 68 | 607 | 420 | 1018 | 53 | 56 |
| L | 590 | 396 | 74 | 72 | 170 | 565 | 550 | 818 | 65 | 626 | 420 | 1037 | 53 | 56 |
| XL | 609 | 408 | 73.5 | 72 | 190 | 588 | 580 | 841 | 65 | 643 | 420 | 1055 | 53 | 56 |
All measurements in millimetres unless marked (°) for angles.
