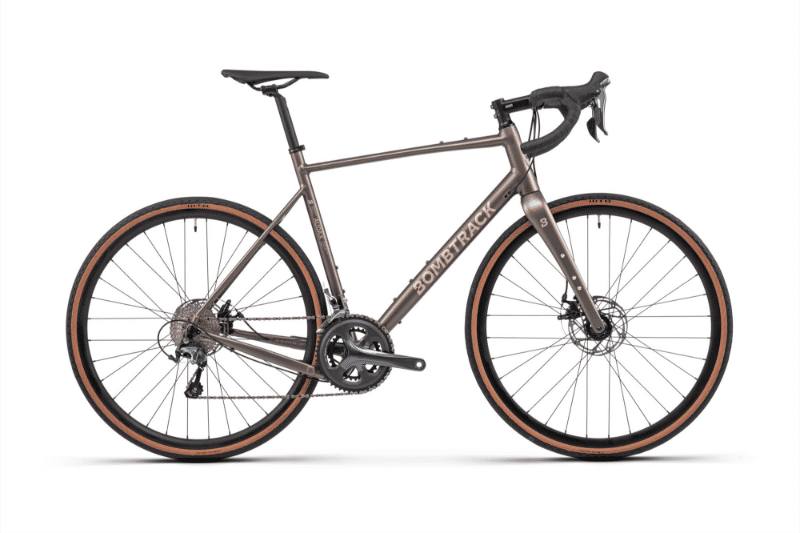

2025 Bombtrack Audax AL geometry
Full frame geometry for the 2025 Bombtrack Audax AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 368 | 75 | 71 | 100 | 505 | 470 | 733 | 70 | 581 | 420 | 991 | 53 | 64 |
| S | 533 | 379 | 74.5 | 72 | 120 | 527 | 500 | 759 | 68 | 590 | 420 | 1000 | 53 | 57 |
| M | 561 | 390 | 74 | 72 | 150 | 551 | 530 | 787 | 68 | 610 | 420 | 1021 | 53 | 57 |
| L | 587 | 401 | 74 | 72 | 180 | 569 | 560 | 818 | 65 | 630 | 420 | 1041 | 53 | 57 |
| XL | 611 | 411 | 73.5 | 72 | 205 | 592 | 590 | 843 | 65 | 647 | 420 | 1059 | 53 | 57 |
All measurements in millimetres unless marked (°) for angles.
